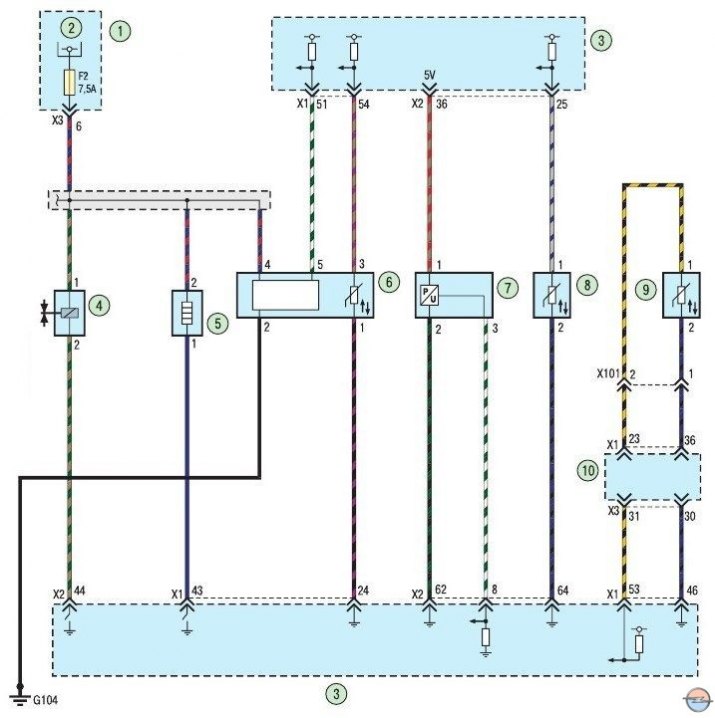

Scheme 12. Pressure and temperature sensors: 1 - mounting block of the engine compartment; 2 - relay of the engine control unit; 3 - engine control unit; 4 - solenoid valve of the exhaust gas recirculation system; 5 - thermostat; b - temperature and mass air flow sensor; 7 - absolute pressure sensor in the intake pipe; 8 - coolant temperature sensor; 9 - second coolant temperature sensor; 10 - mounting block of the engine compartment
Scheme 12. Pressure and temperature sensors: 1 - mounting block of the engine compartment; 2 - relay of the engine control unit; 3 - engine control unit; 4 - solenoid valve of the exhaust gas recirculation system; 5 - thermostat; b - temperature and mass air flow sensor; 7 - absolute pressure sensor in the intake pipe; 8 - coolant temperature sensor; 9 - second coolant temperature sensor; 10 - mounting block of the engine compartment
