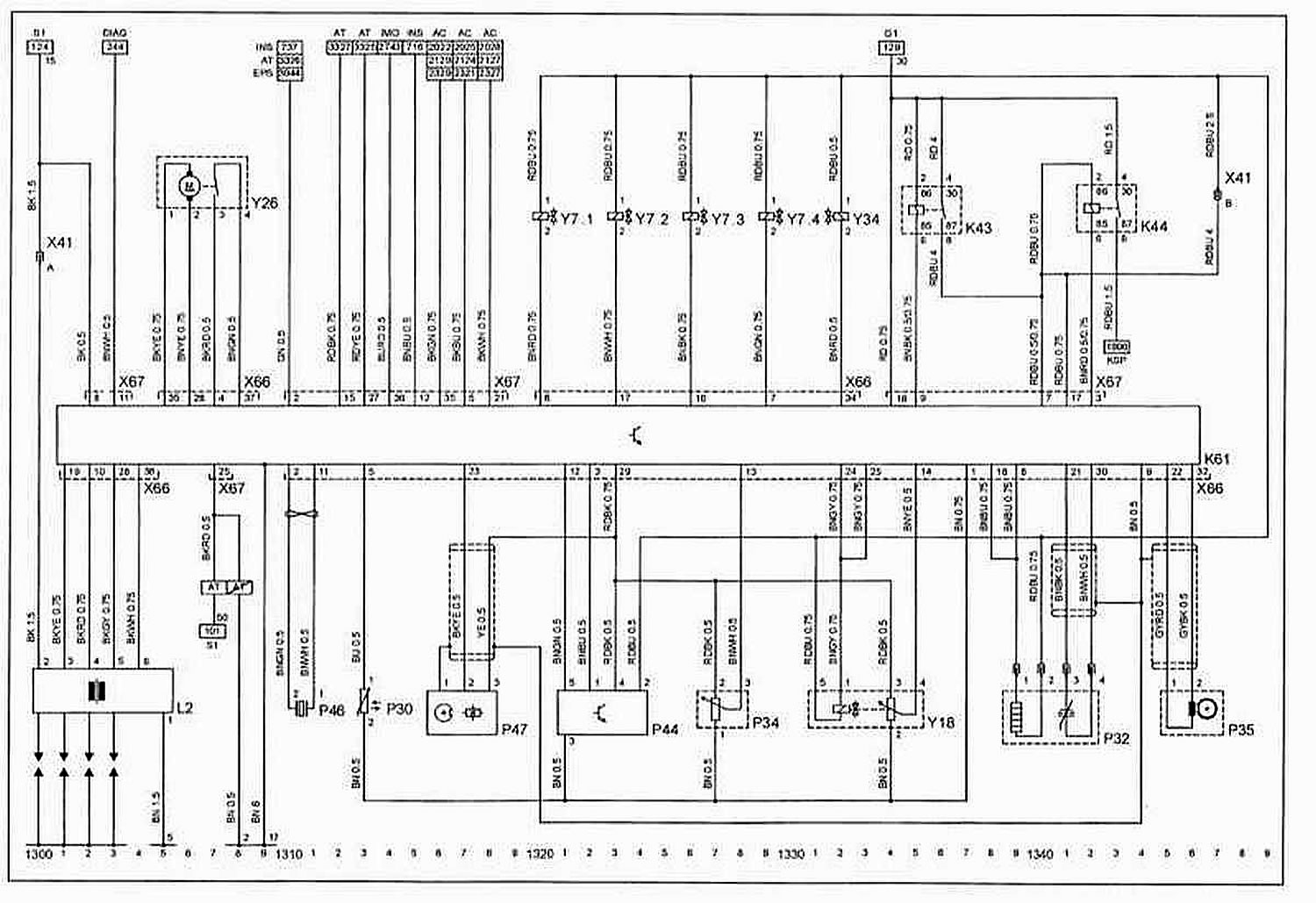

X12XE engine
Open large image in new tab →
The designations for the electrical diagram are given in this article >>.
Open large image in new tab →
The designations for the electrical diagram are given in this article >>.
X12XE engine
Open large image in new tab →
The designations for the electrical diagram are given in this article >>.
This article is available at russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian
