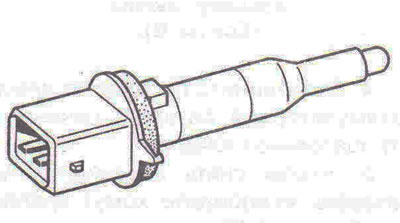

Fig. 9.30. Evaporator sensor.
The evaporator sensor can be removed without removing any components. Access is possible from below the dashboard on the passenger side (Fig. 9.31).

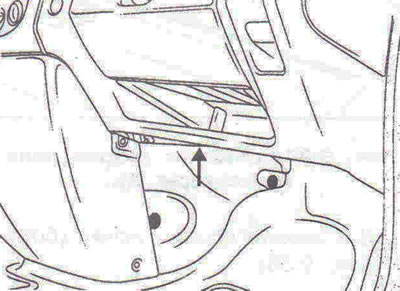

Fig. 9.31. Location of the evaporator sensor.
Disconnect the wiring connector from the sensor. Remove the sensor by turning it 1/4 turn.
