Removal
1. Disconnect the battery.
2. Using a filling station, drain the refrigerant from the refrigeration circuit.
3. Remove the radiator grille, right headlight, unscrew the mounting bolt A of the pipeline retaining tab, unscrew the mounting bolt B of the low-pressure pipeline to the car body, unscrew the two mounting bolts C of both pipelines to the receiver-dryer (Fig. 9.22).

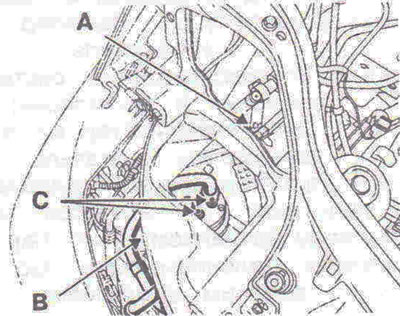

Fig. 9.22. Unscrew the bolt A securing the holding tab of the pipelines, unscrew the bolt B securing the low-pressure pipeline to the vehicle body, unscrew the two bolts C securing both pipelines to the receiver-dryer.
4. Remove the receiver with the gasket.
Installation
5. Lubricate the pipeline gaskets with the oil used for the compressor. Installation is carried out in the reverse order of removal. Fill the refrigeration circuit with refrigerant using a filling station. When replacing the receiver-dryer, add 15 ml of the recommended oil to the compressor.
