Removal
1. From the engine compartment: pinch each hose in front of the heater radiator air bleed valves.
2. From the salon side:
- remove the center console (Fig. 9.13);

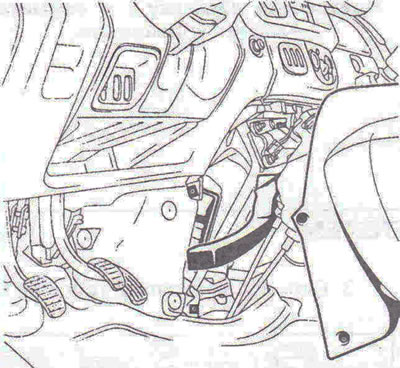

Fig. 9.13. Remove the center console.
- Disconnect the hazard warning switch;
- disconnect the three fasteners A of the left side cover

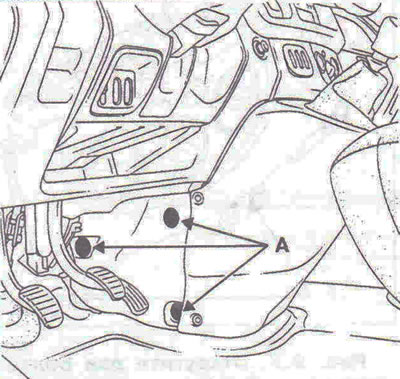

Fig. 9.14. Disconnect the three fasteners A of the left side cover with the air duct.
Note: It is not necessary to remove the instrument panel to remove the radiator.
3. Place a container under the radiator to collect the coolant.
4. Remove the two clamps A from the radiator outlet and inlet hoses (Fig. 9.15). Disconnect the inlet and outlet hoses. Unscrew the two radiator mounting bolts, then remove the radiator.

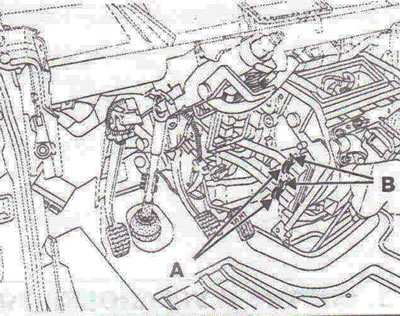

Fig. 9.15. Remove the two clamps A of the radiator outlet and inlet hoses. Unscrew the two bolts B securing the radiator, then remove the radiator.
Installation
5. Installation is carried out in the reverse order of removal.
