Removal
1. Open the hood.
2. Disconnect the battery.

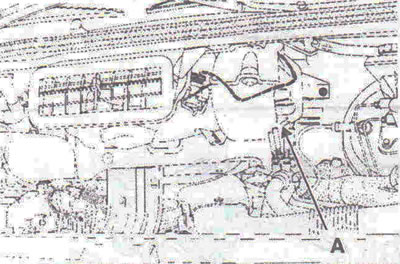

3. Remove the fan motor from the casing by unscrewing bolts A (Fig. 9.16).
Fig. 9.16. Remove the fan motor from the casing by unscrewing bolts A.

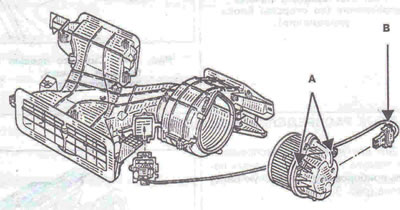

4. Release and then slightly rotate the housing so that the wiring connector B can be disconnected (Fig. 9.17).
Fig. 9.17. Release and then slightly rotate the housing so that wiring connector B can be disconnected.
Installation
5. Installation is carried out in the reverse order of removal.
