Wiring harness layout diagram
0

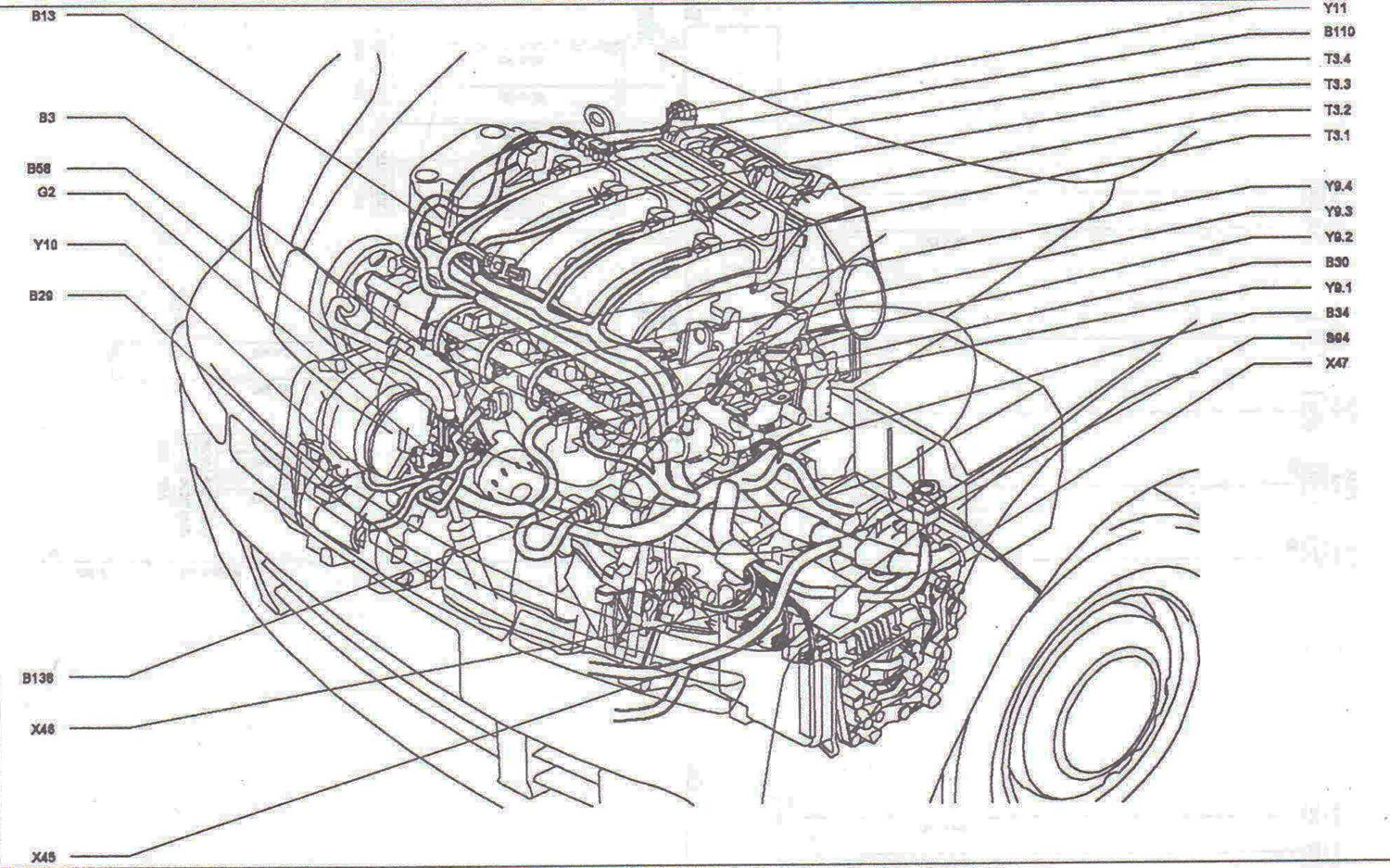

Engine F4R720
Open large image in new tab →

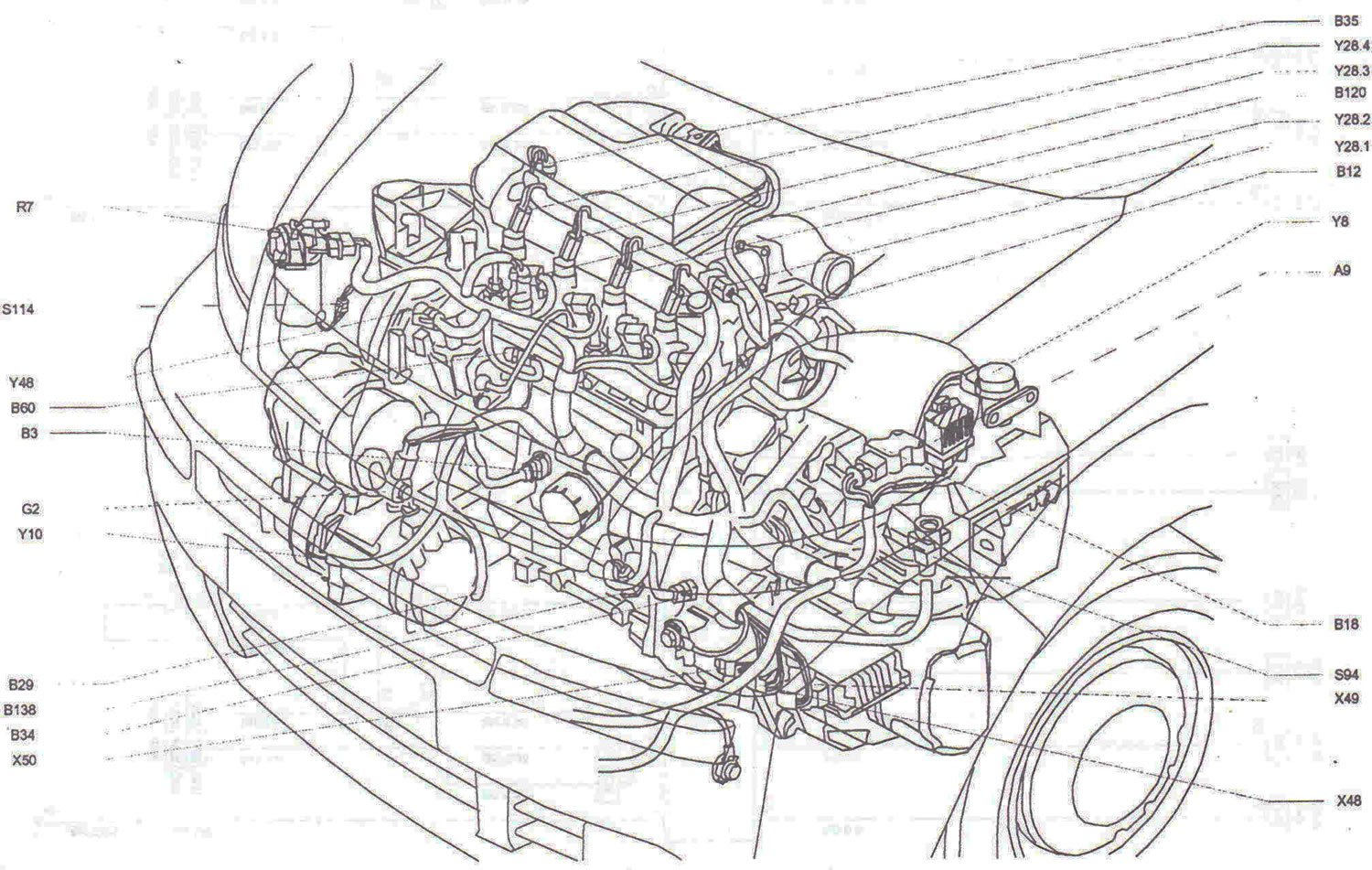

Engine F7Q760/762 (I)
Open large image in new tab →

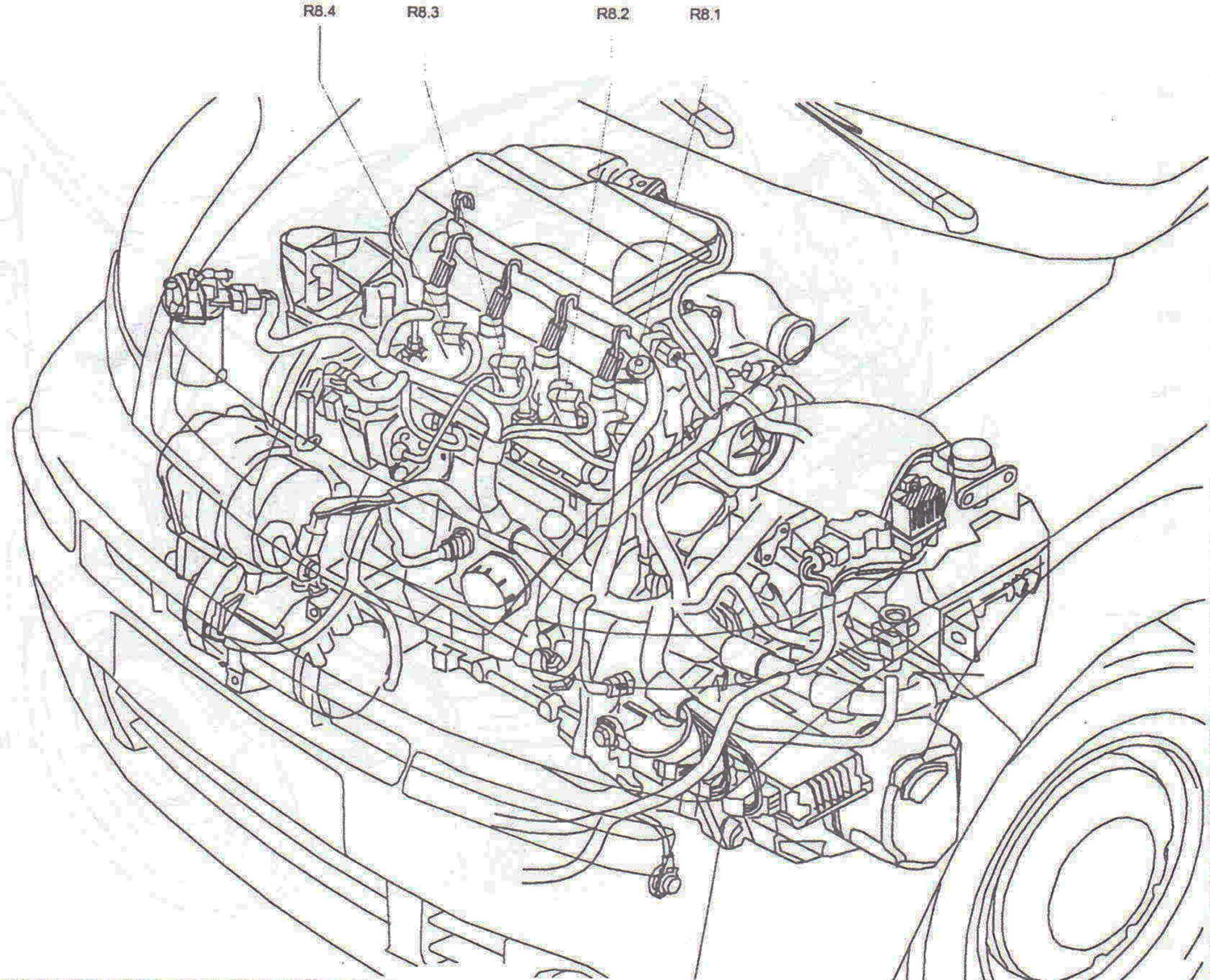

Engine F7Q760/762 (II)
Open large image in new tab →

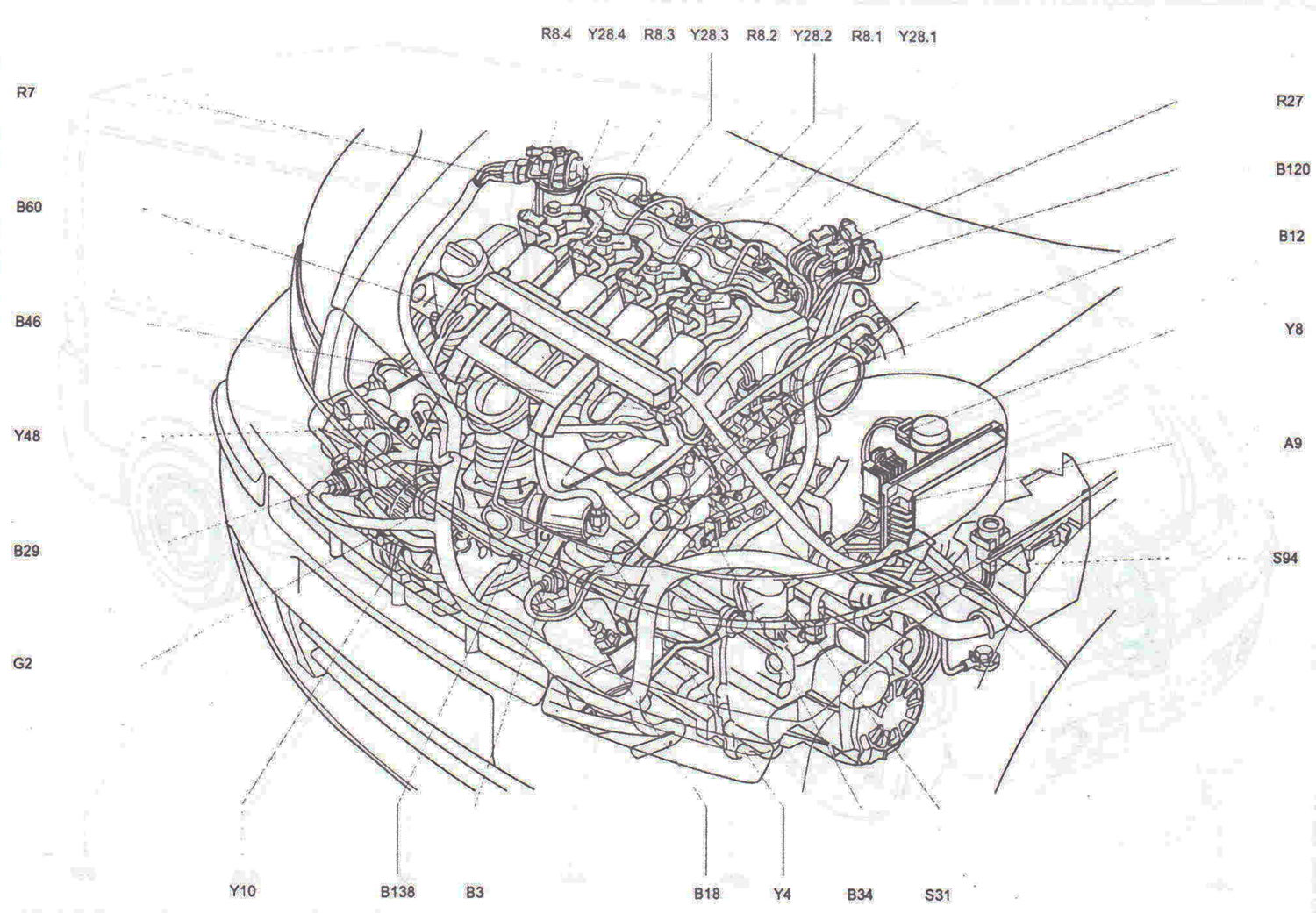

Engine G9U730
Open large image in new tab →

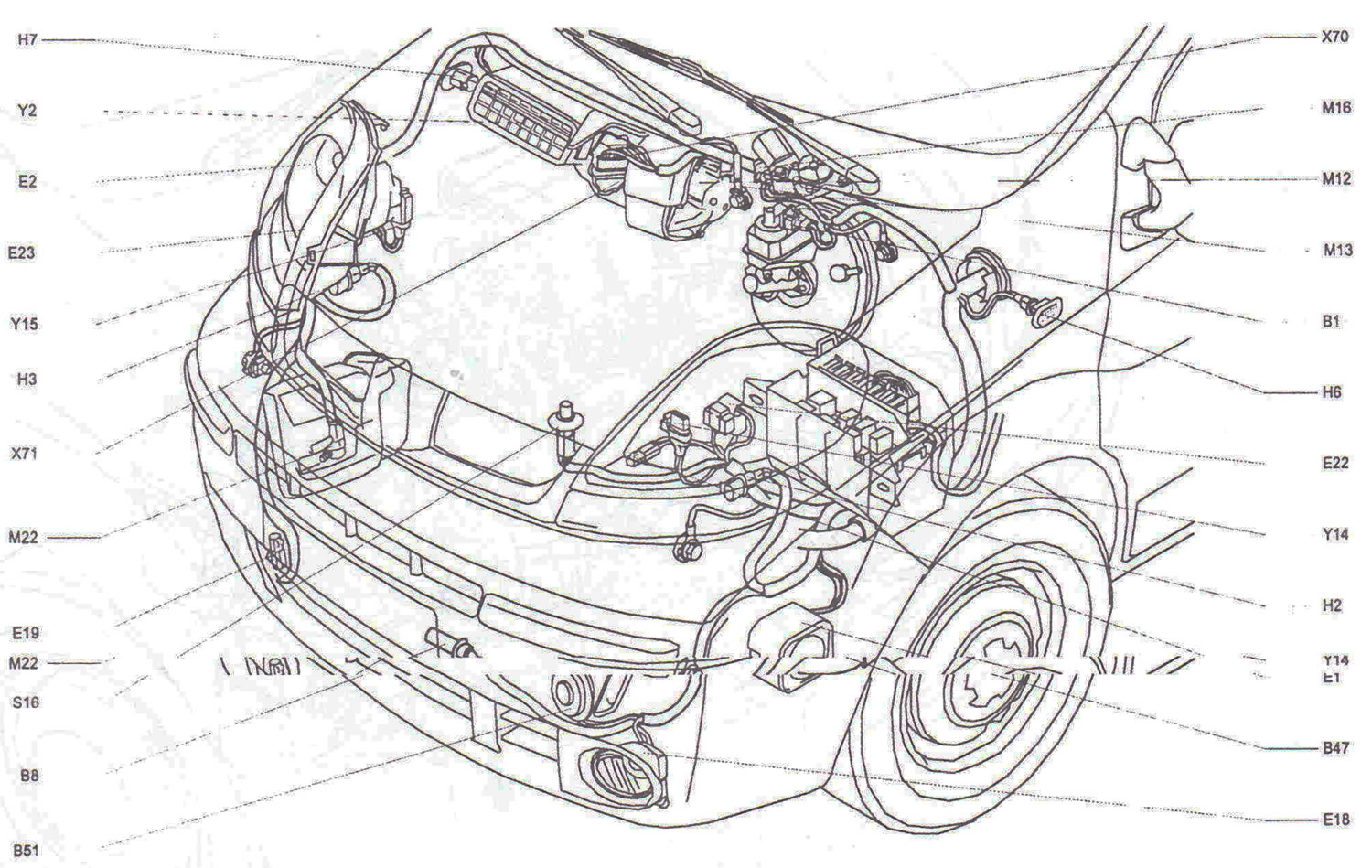

Engine compartment
Open large image in new tab →

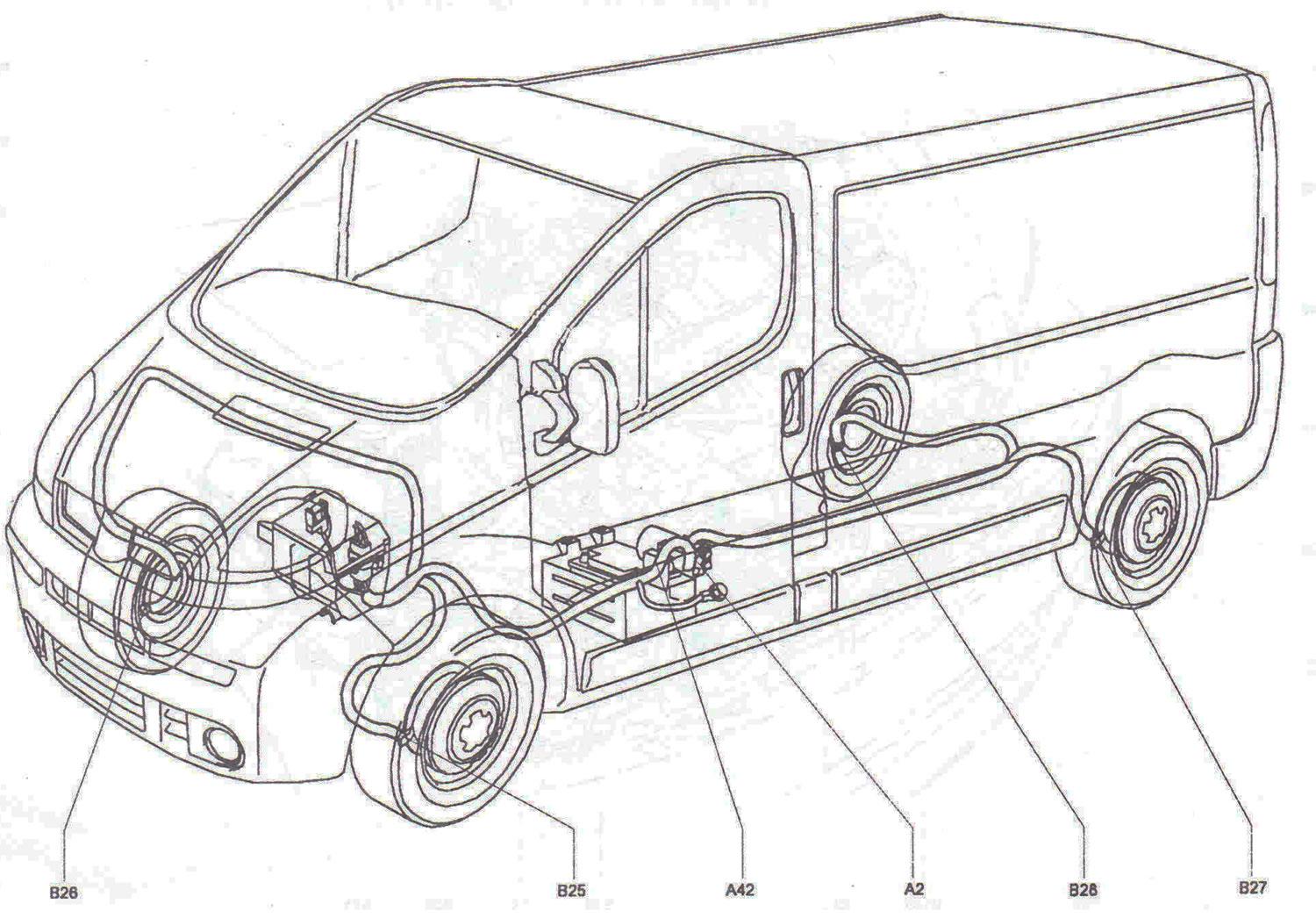

Anti-lock braking system ABS
Open large image in new tab →

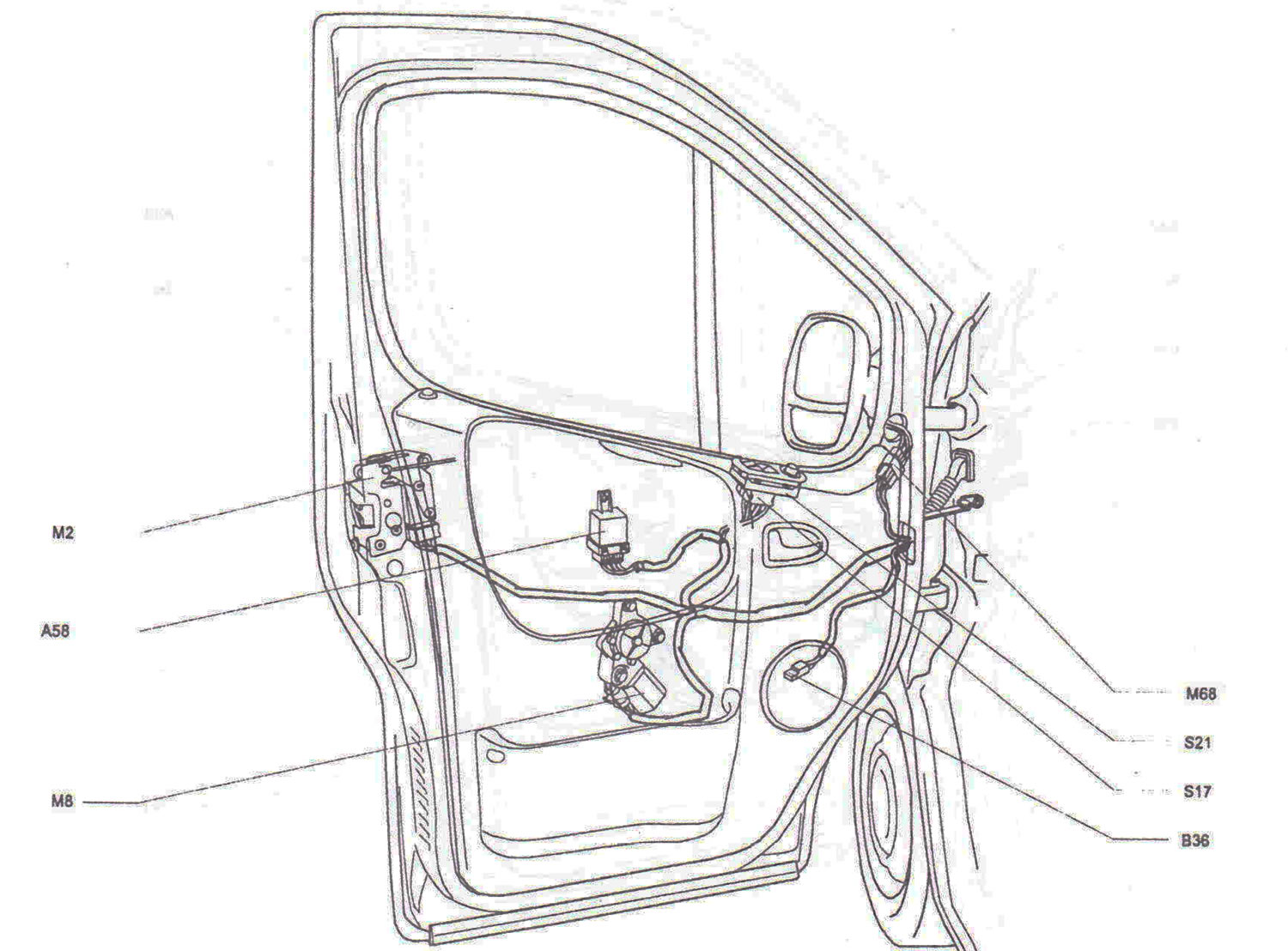

Driver's door (left hand drive vehicles)
Open large image in new tab →

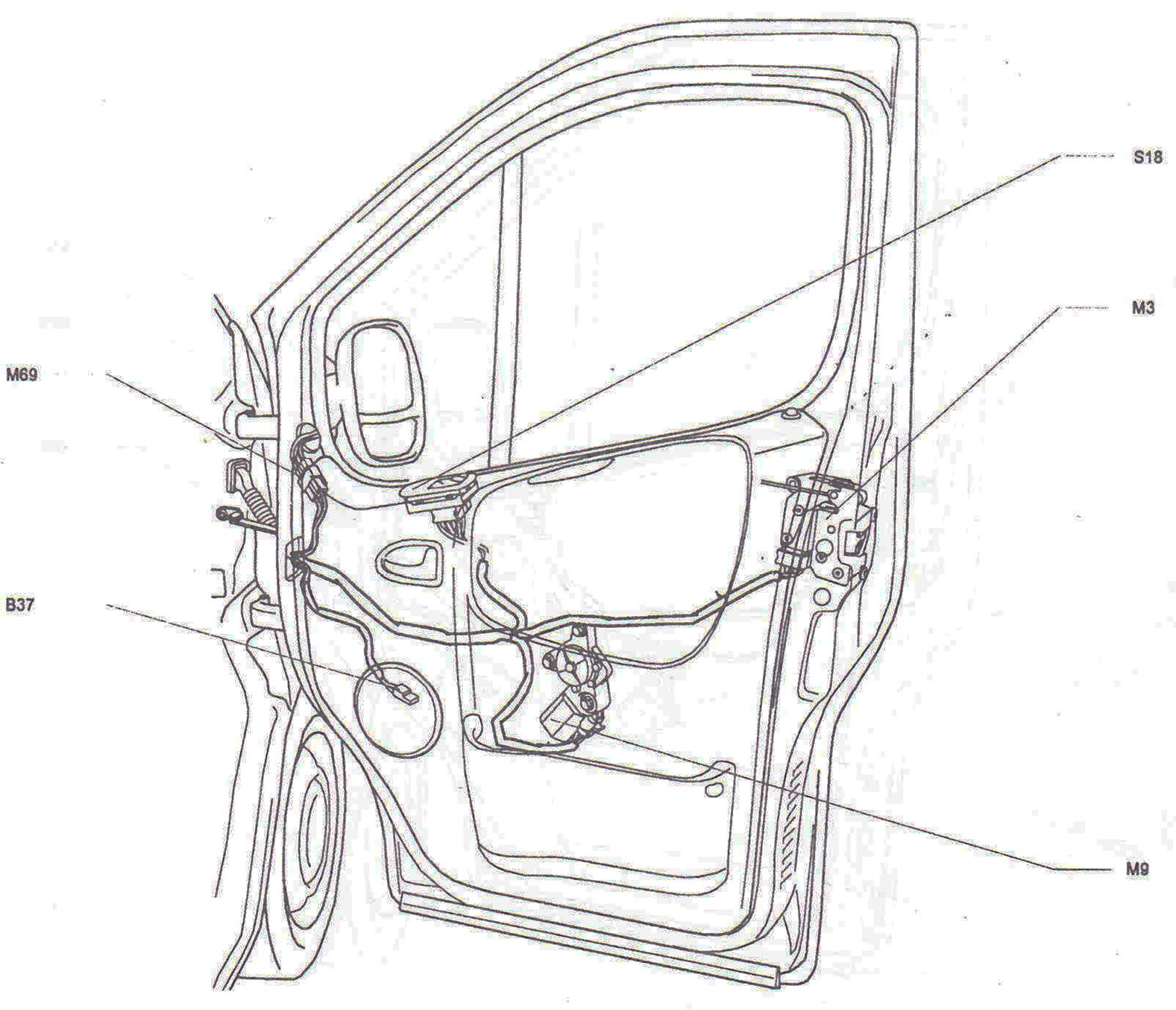

Passenger door (left hand drive vehicles)
Open large image in new tab →

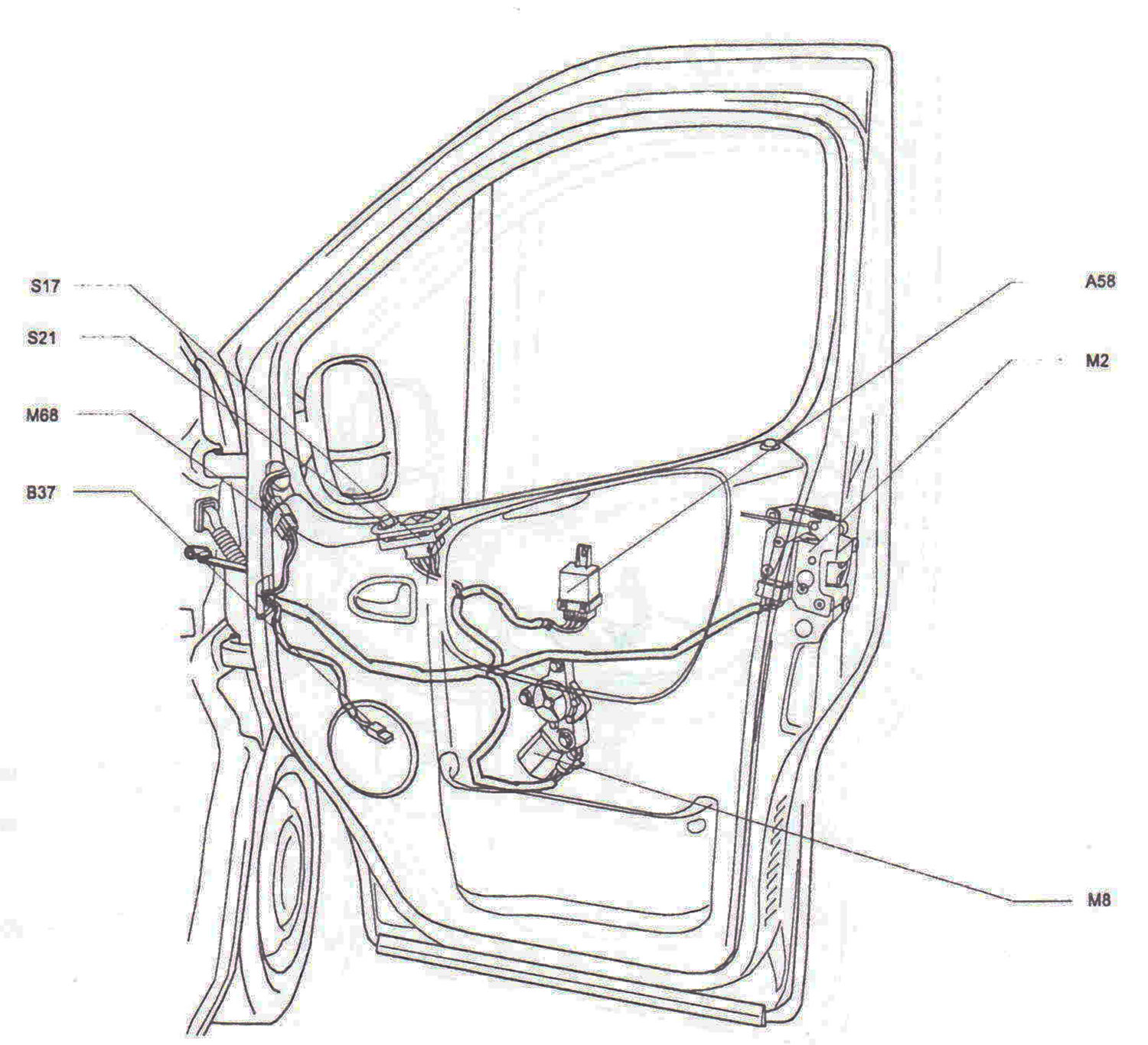

Driver's door (right hand drive vehicles)
Open large image in new tab →

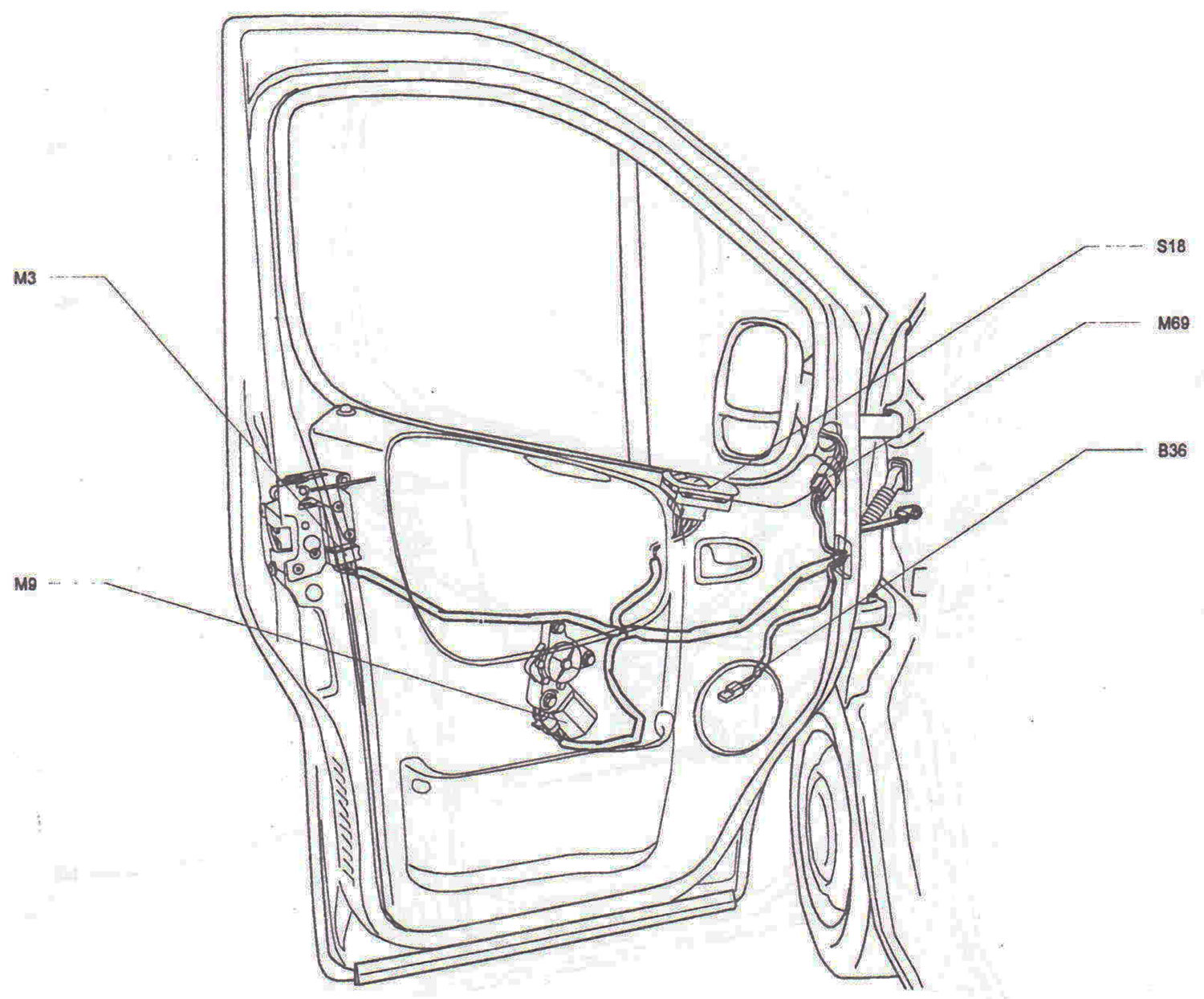

Passenger door (right hand drive vehicles)
Open large image in new tab →

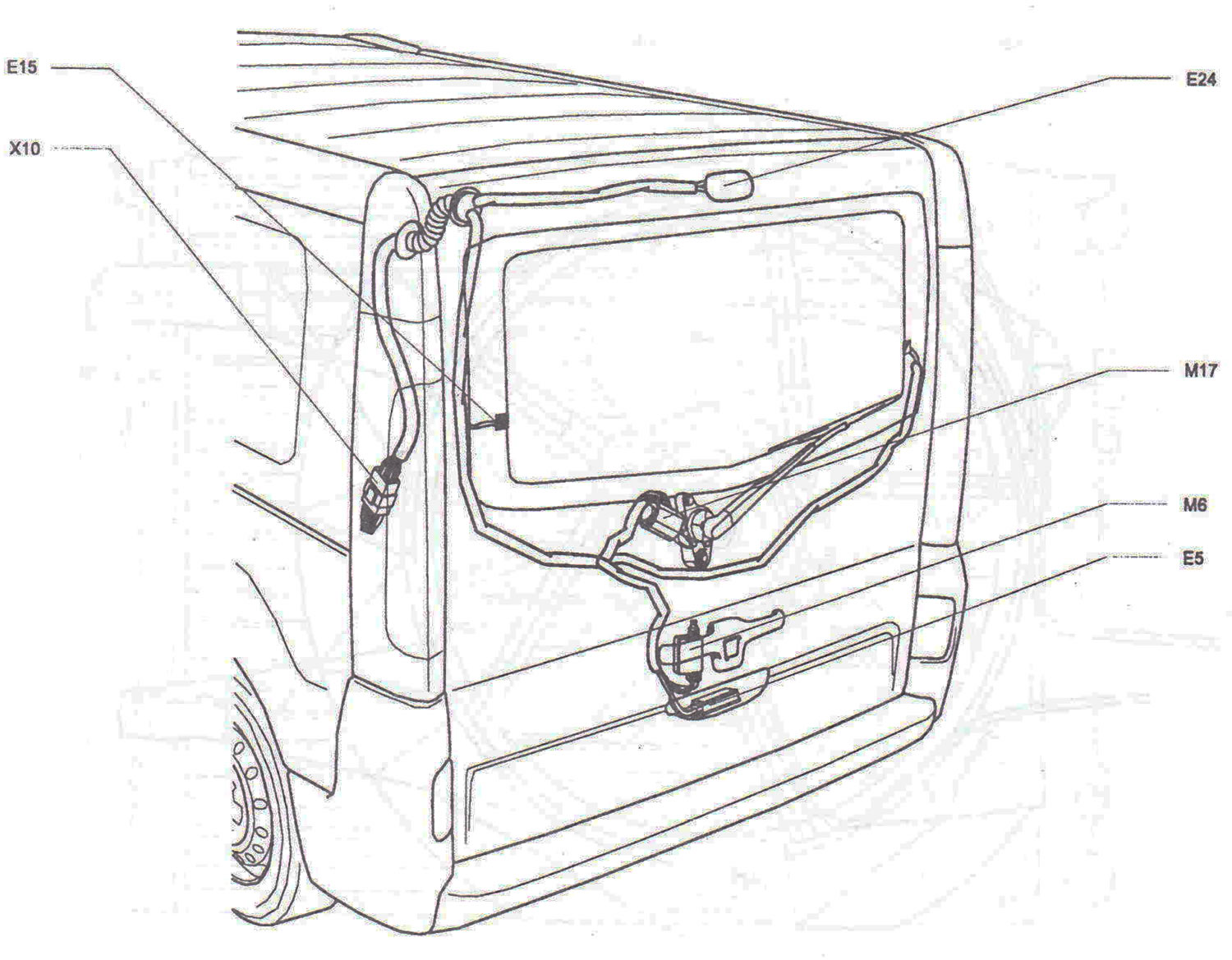

Rear liftgate
Open large image in new tab →

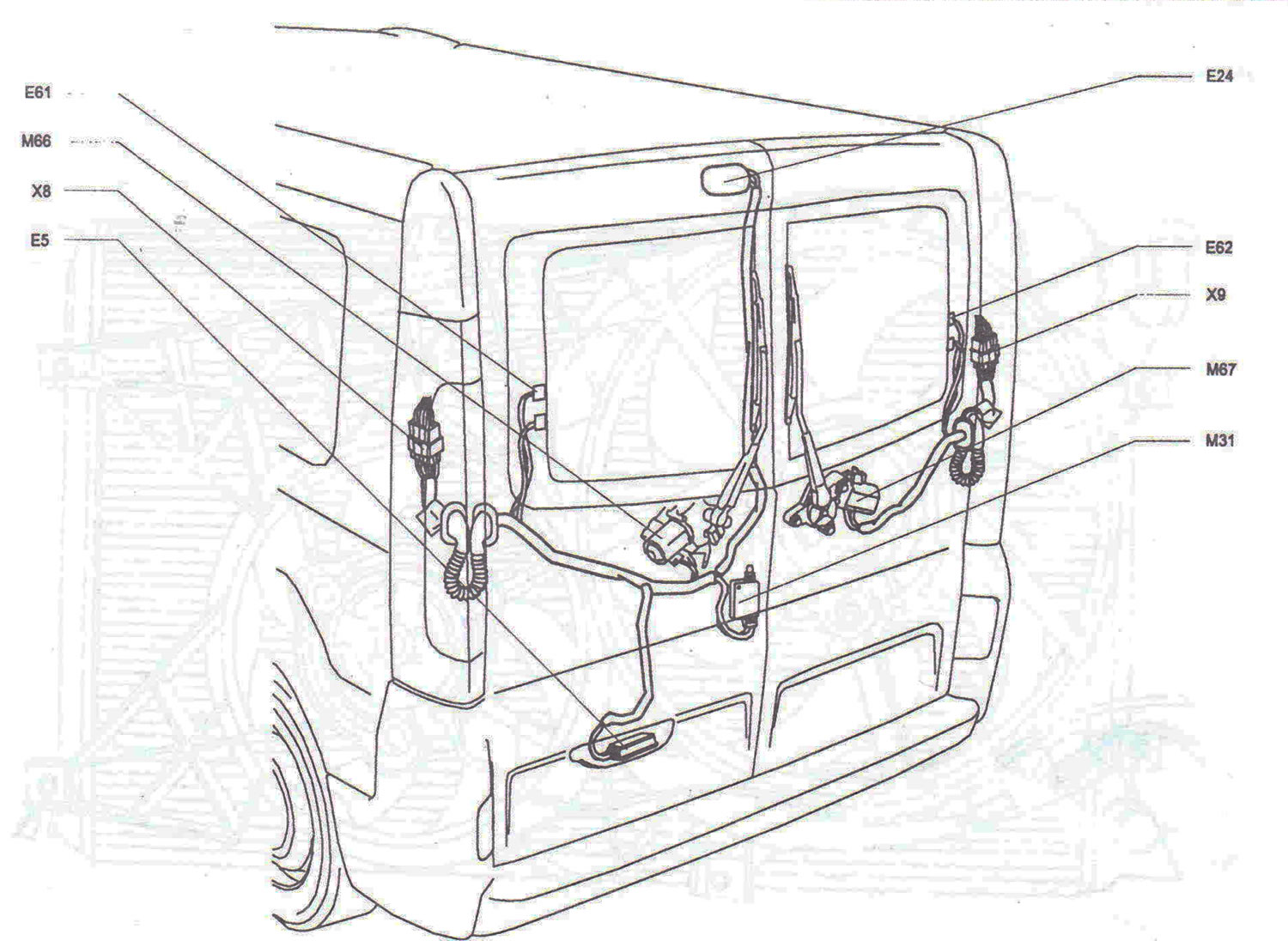

Rear hinged doors
Open large image in new tab →

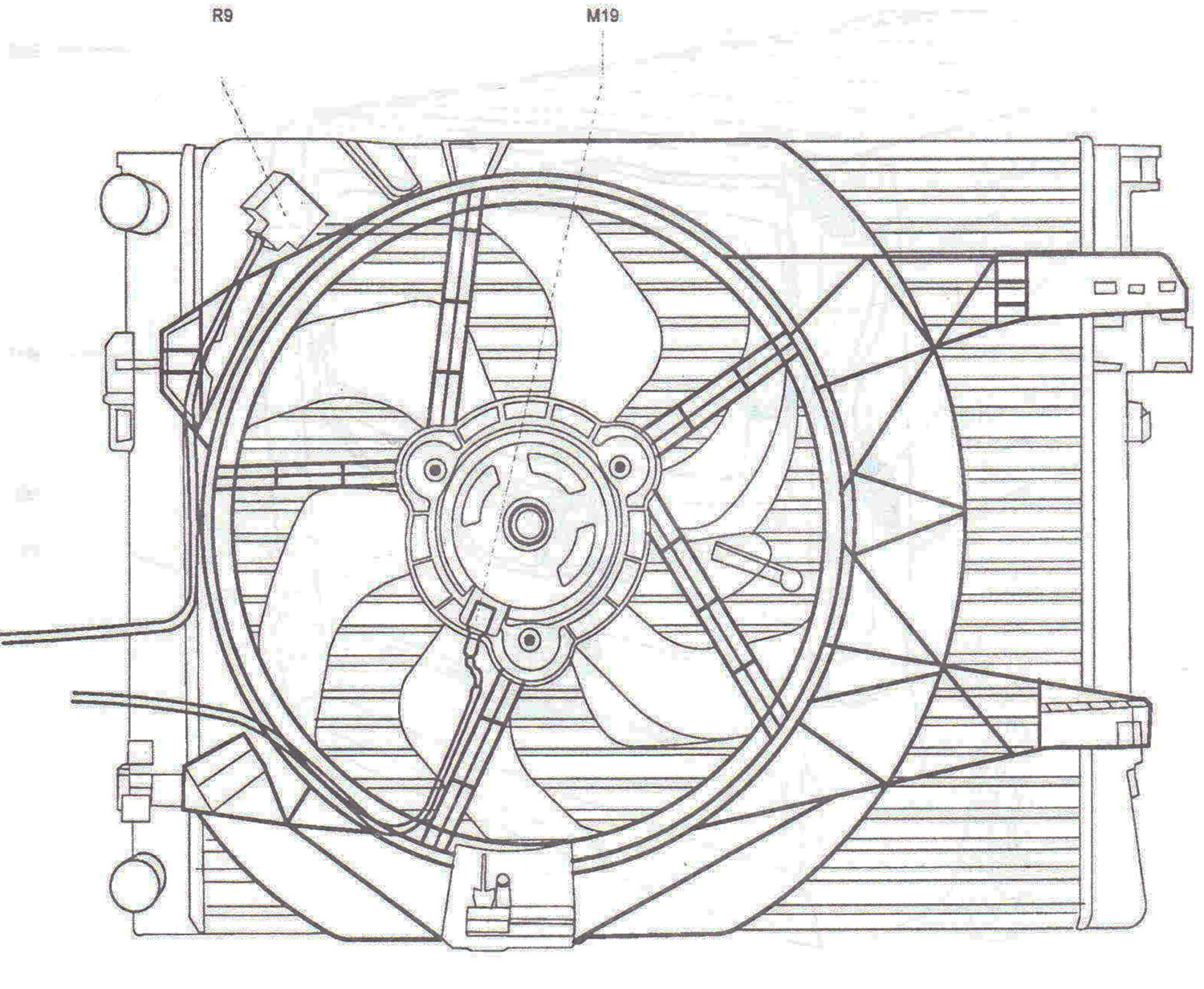

Engine Radiator F4R720 and F9Q760/762
Open large image in new tab →

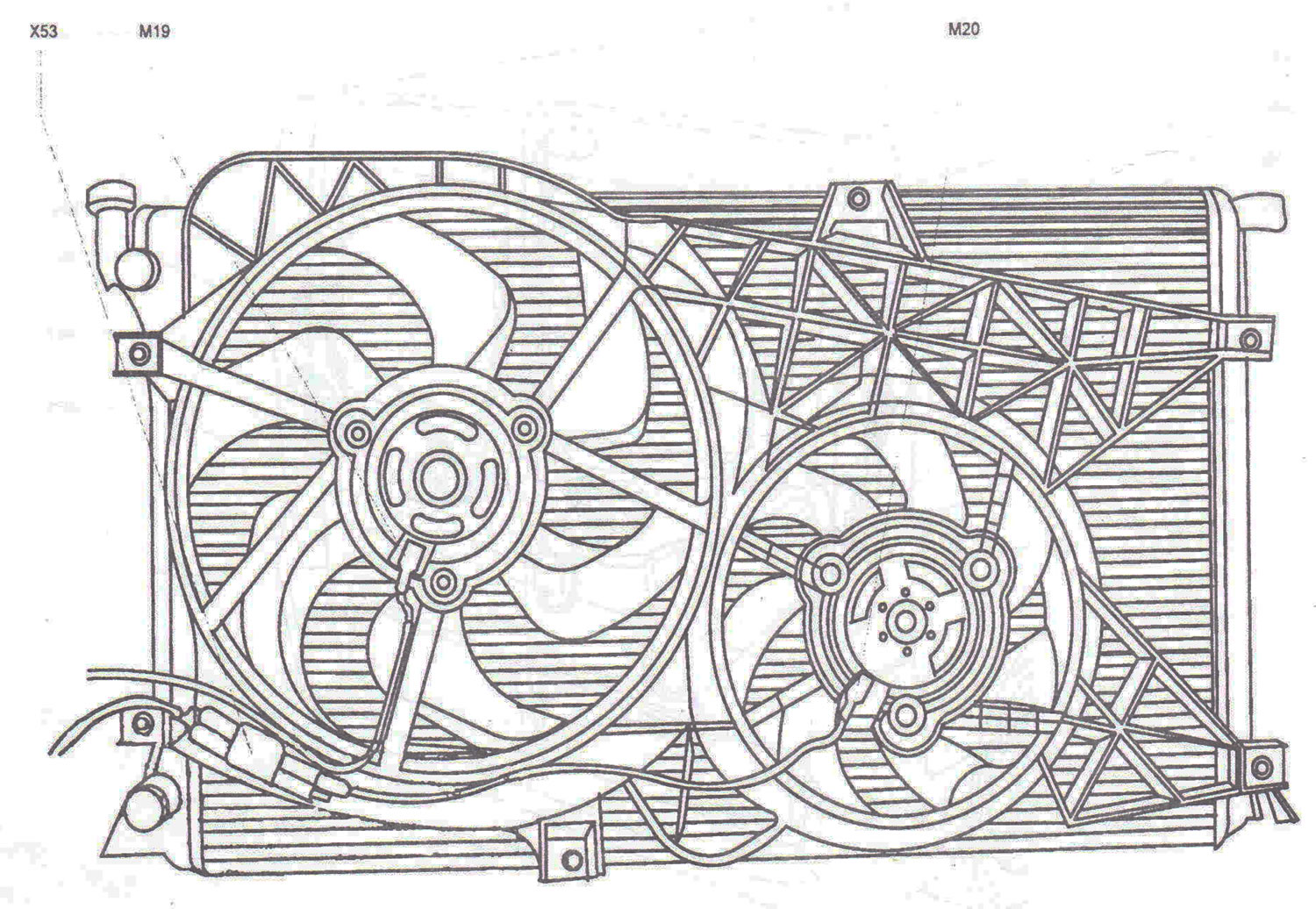

Engine radiator
Open large image in new tab →

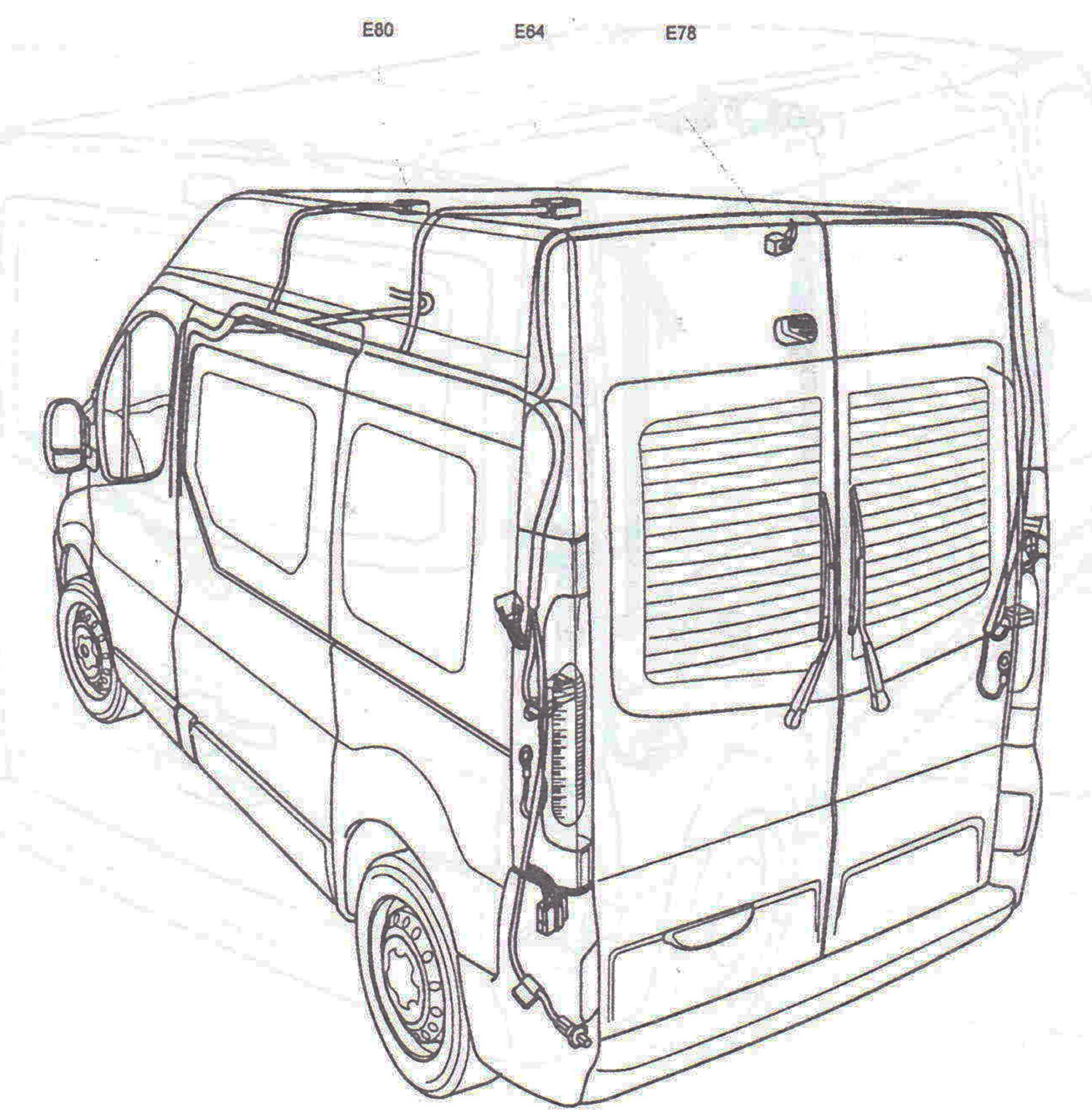

Roof (high roof cars)
Open large image in new tab →

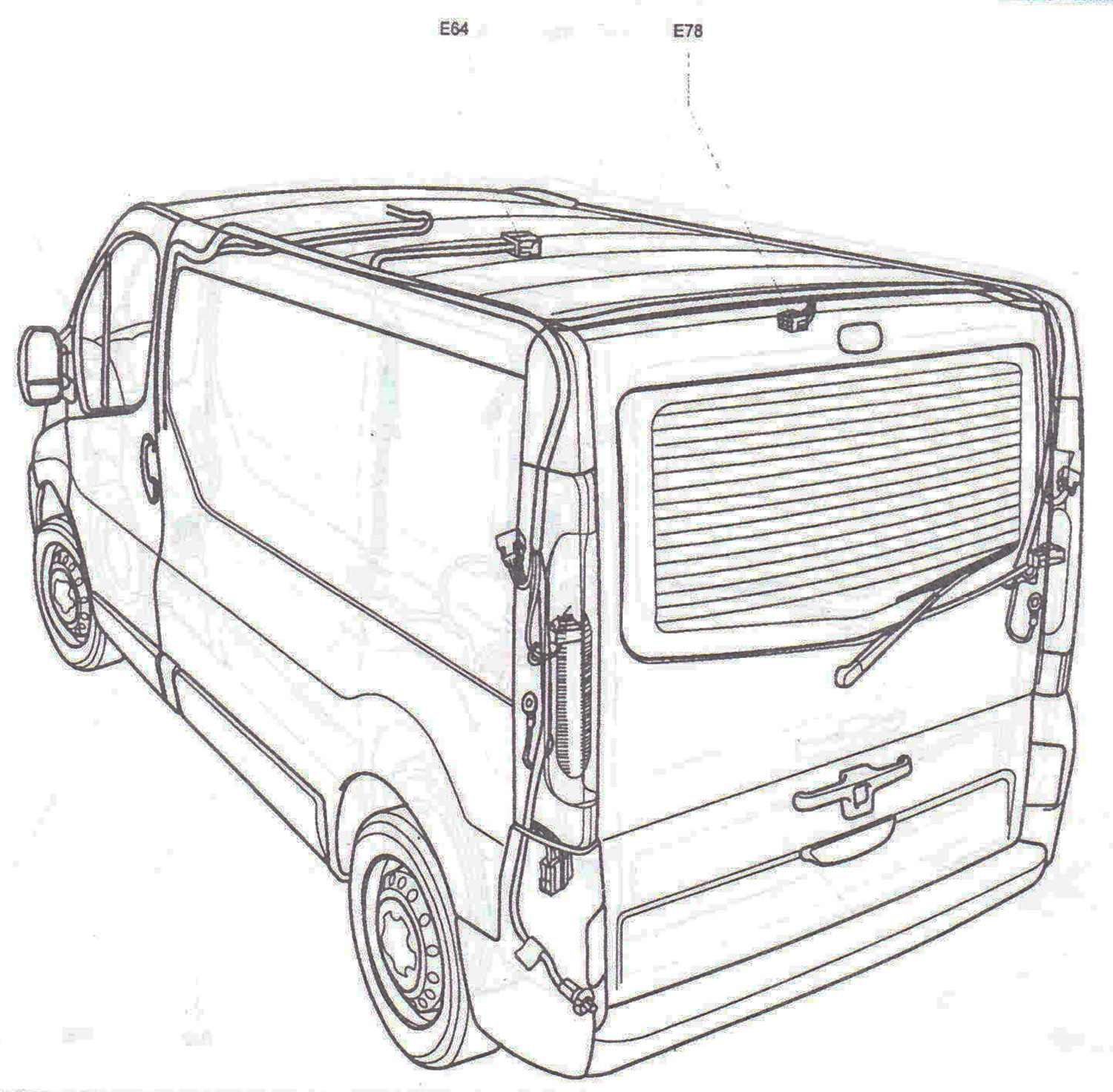

Roof (cars with standard roof)
Open large image in new tab →

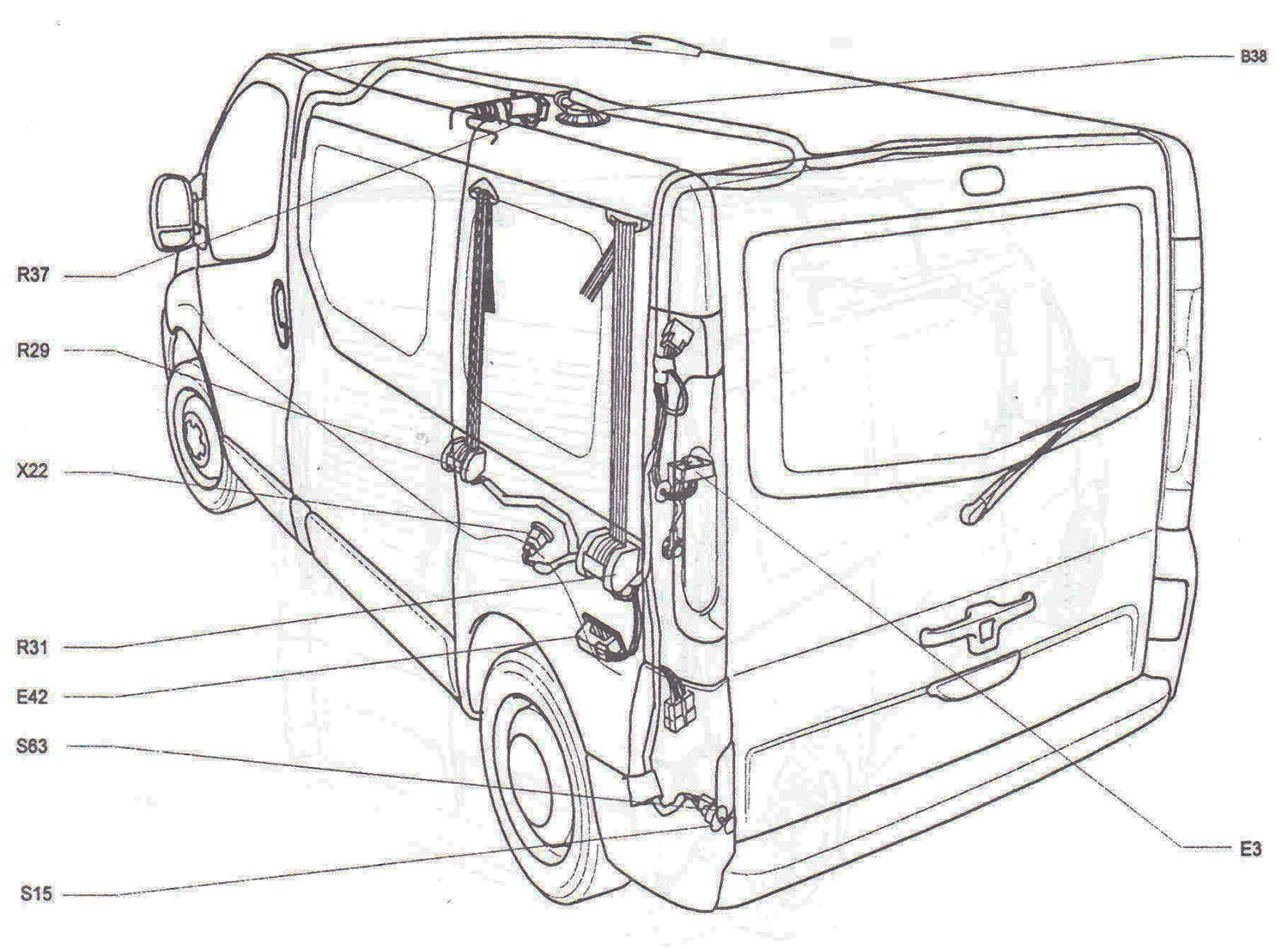

Passenger compartment (left side)
Open large image in new tab →

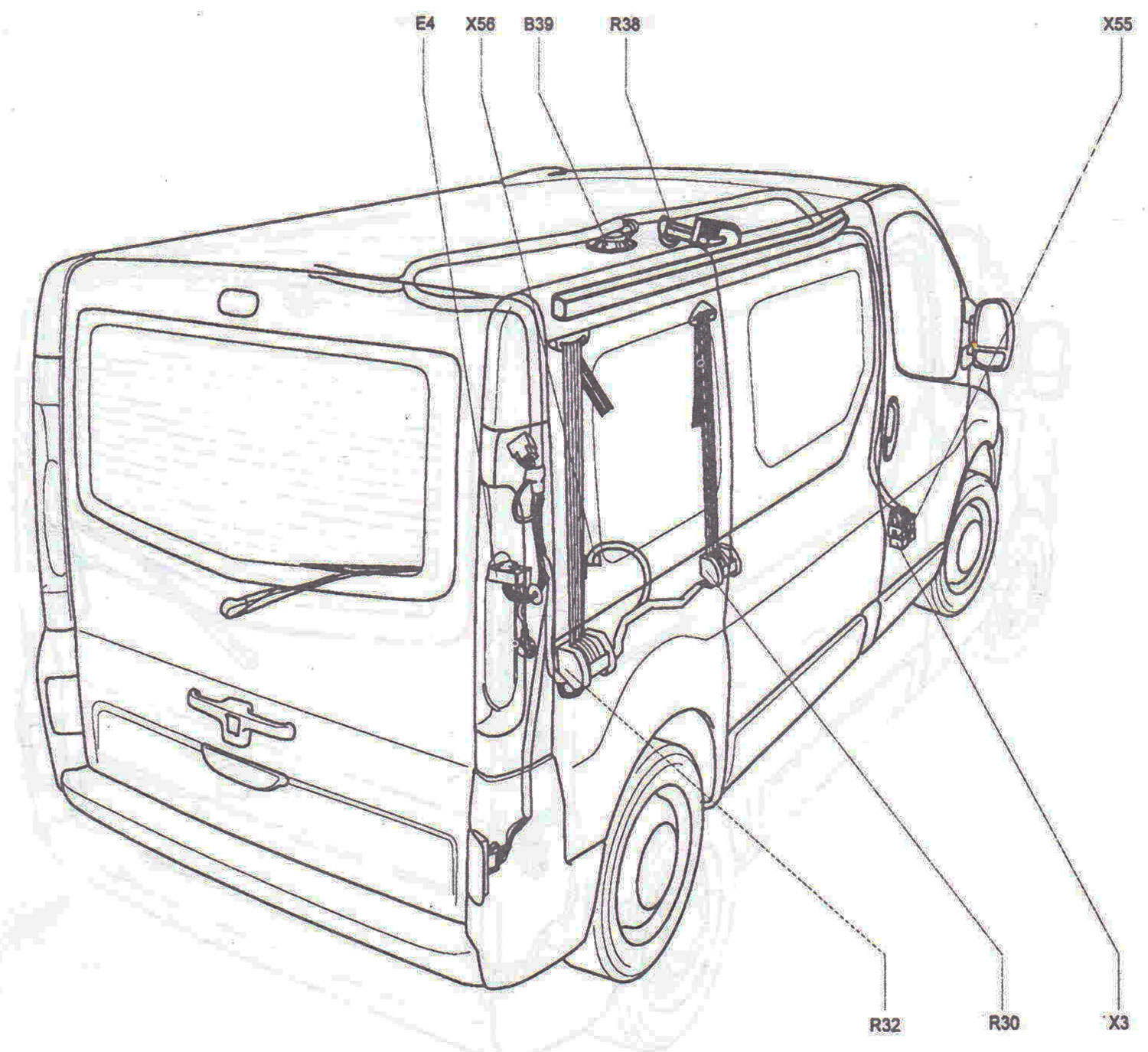

Passenger compartment (right side)
Open large image in new tab →

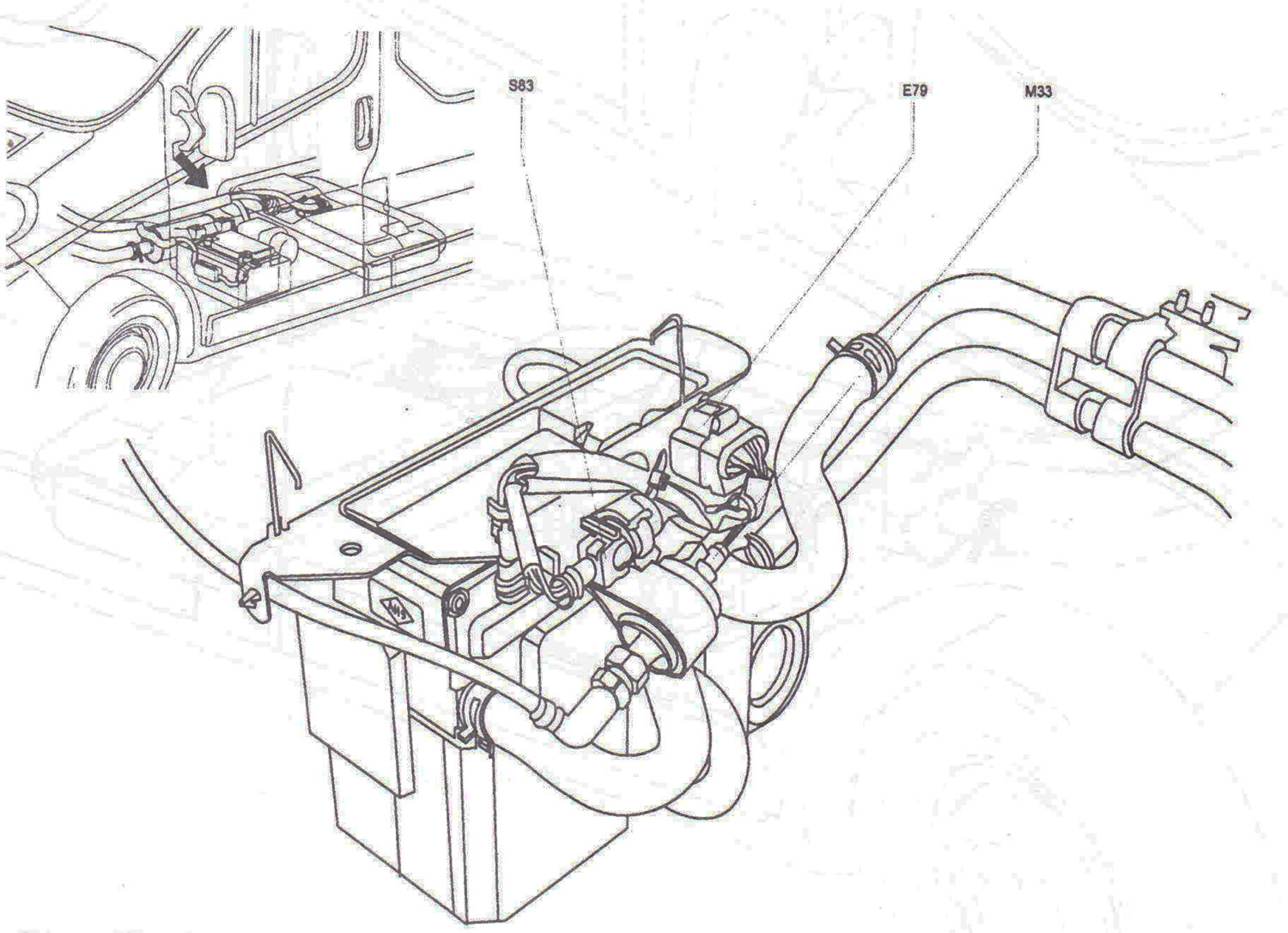

Wiring location under the car body
Open large image in new tab →

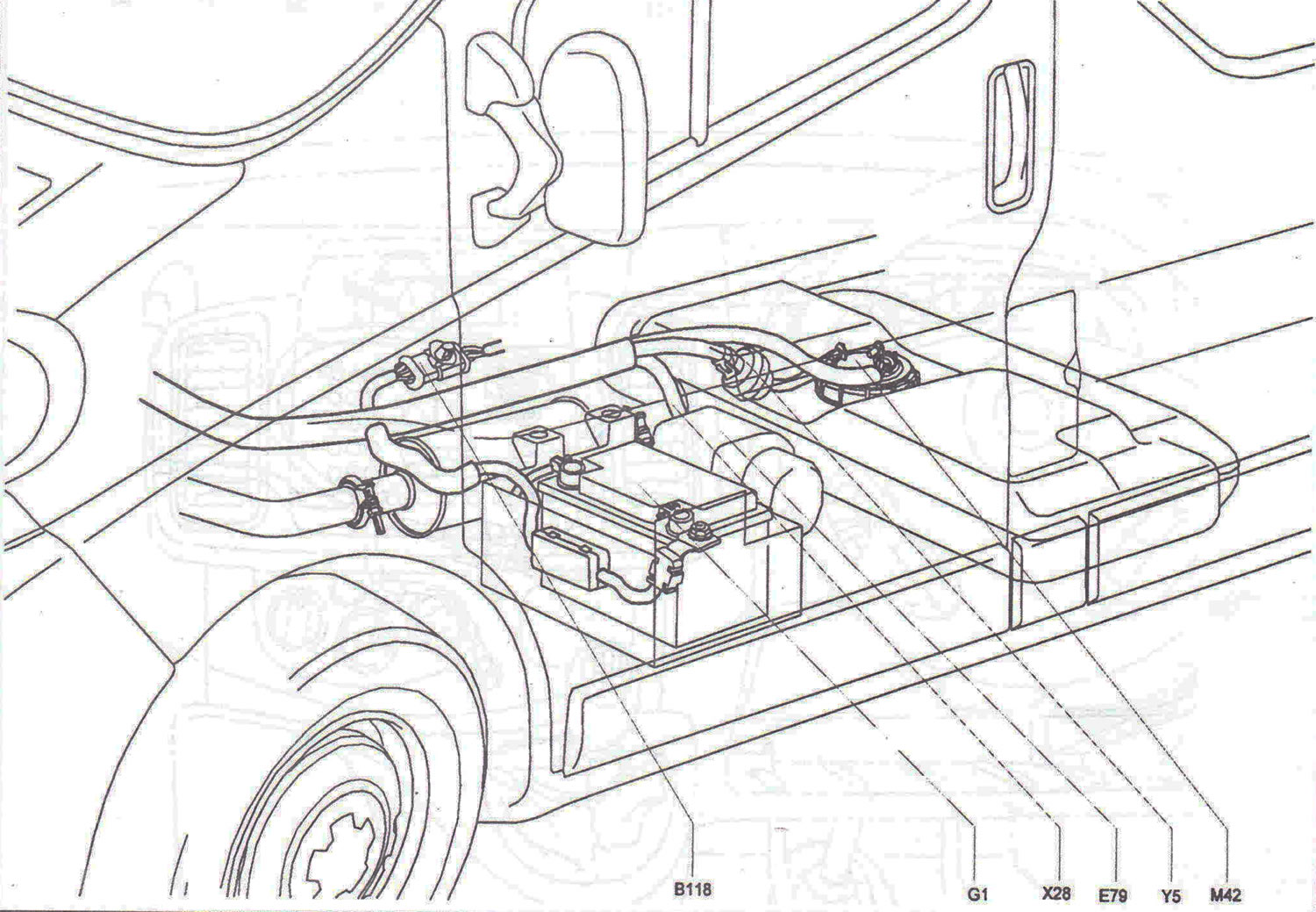

Wiring location under the body of a car with a gasoline engine
Open large image in new tab →

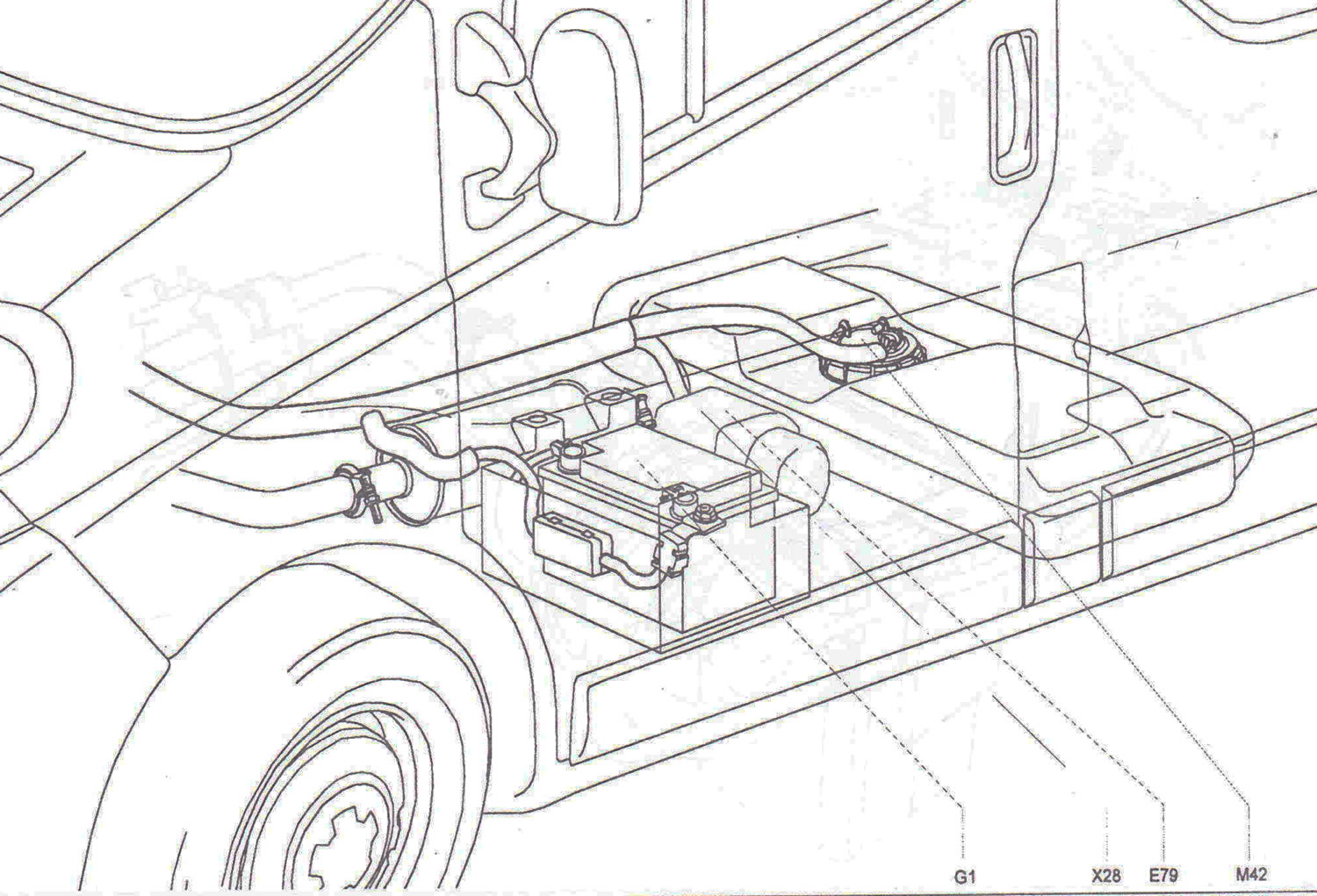

Wiring location under the body of a car with a diesel engine
Open large image in new tab →

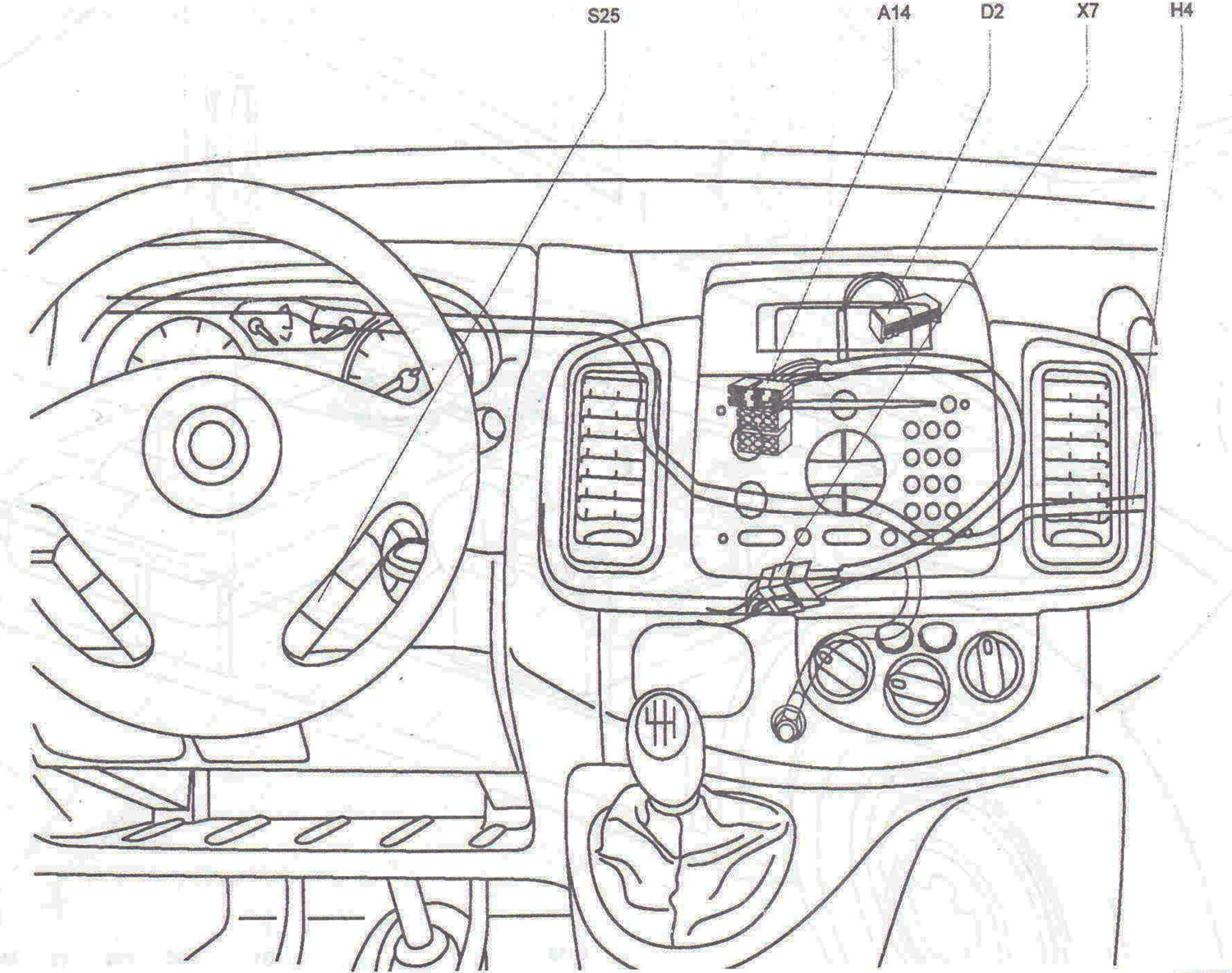

Central part of the instrument panel (Carphone)
Open large image in new tab →

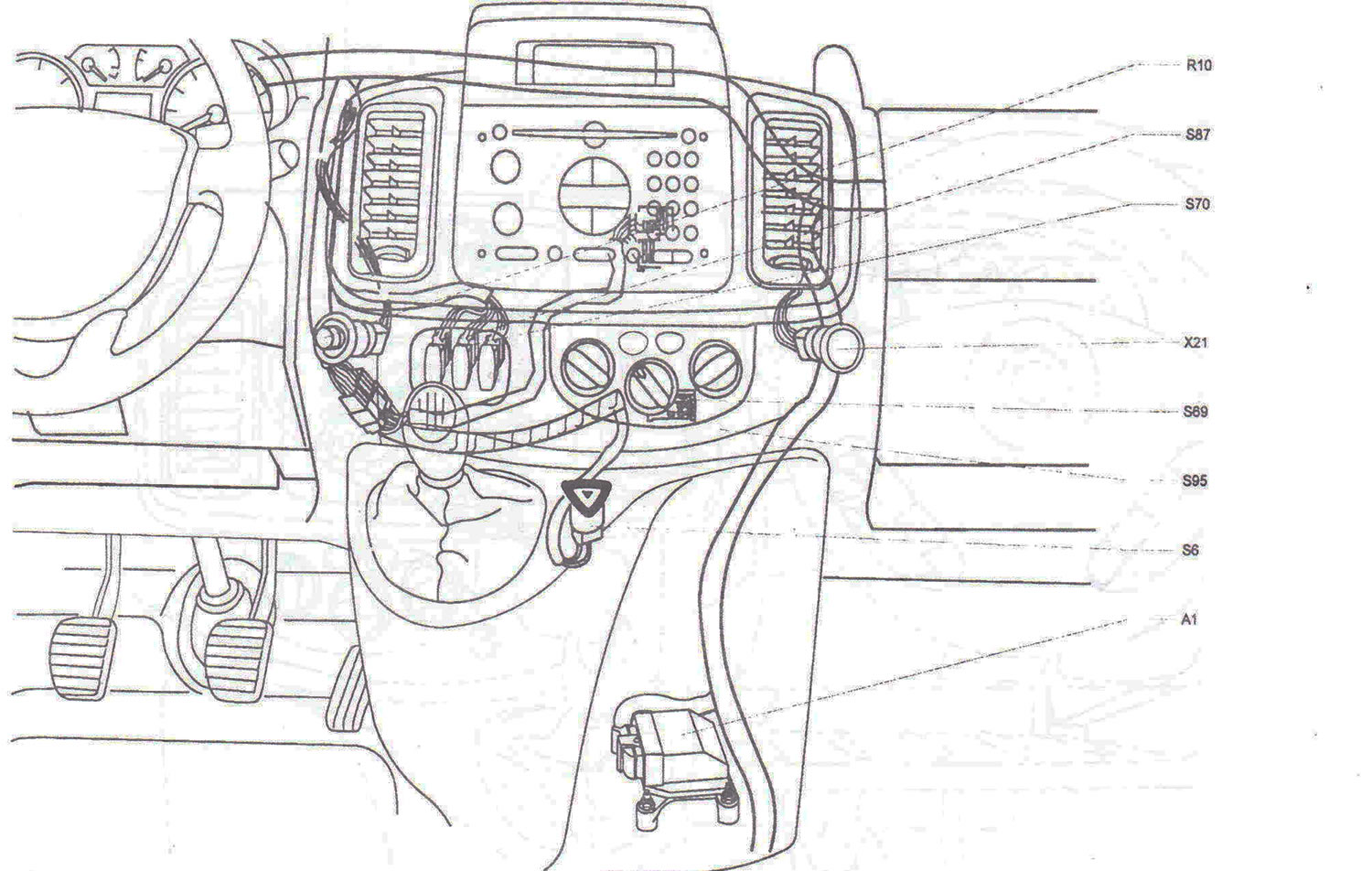

Central part of the instrument panel (left hand drive vehicles)
Open large image in new tab →

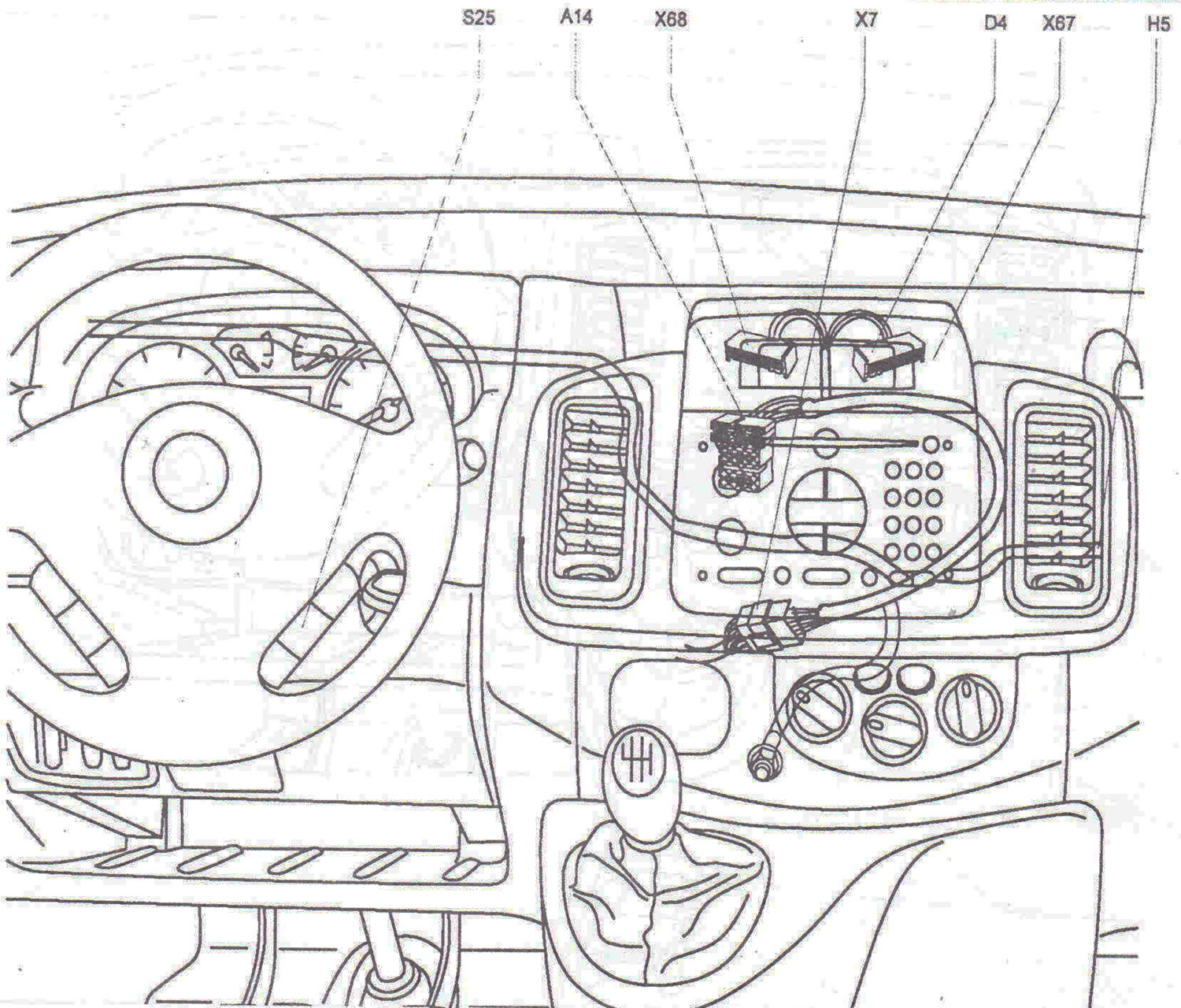

The central part of the instrument panel with the navigation system and the system «Telematic»
Open large image in new tab →

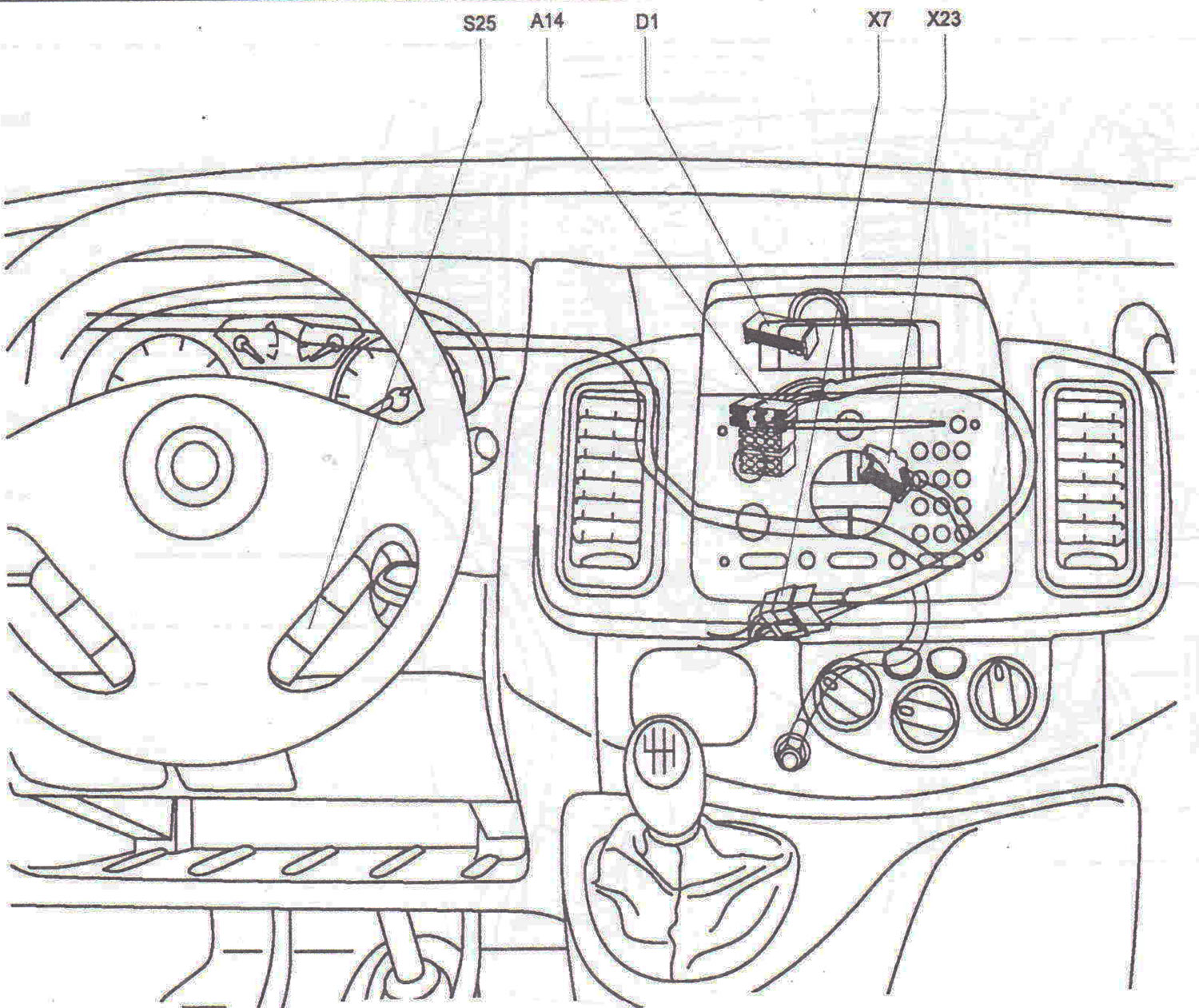

The central part of the instrument panel with the radio receiver
Open large image in new tab →

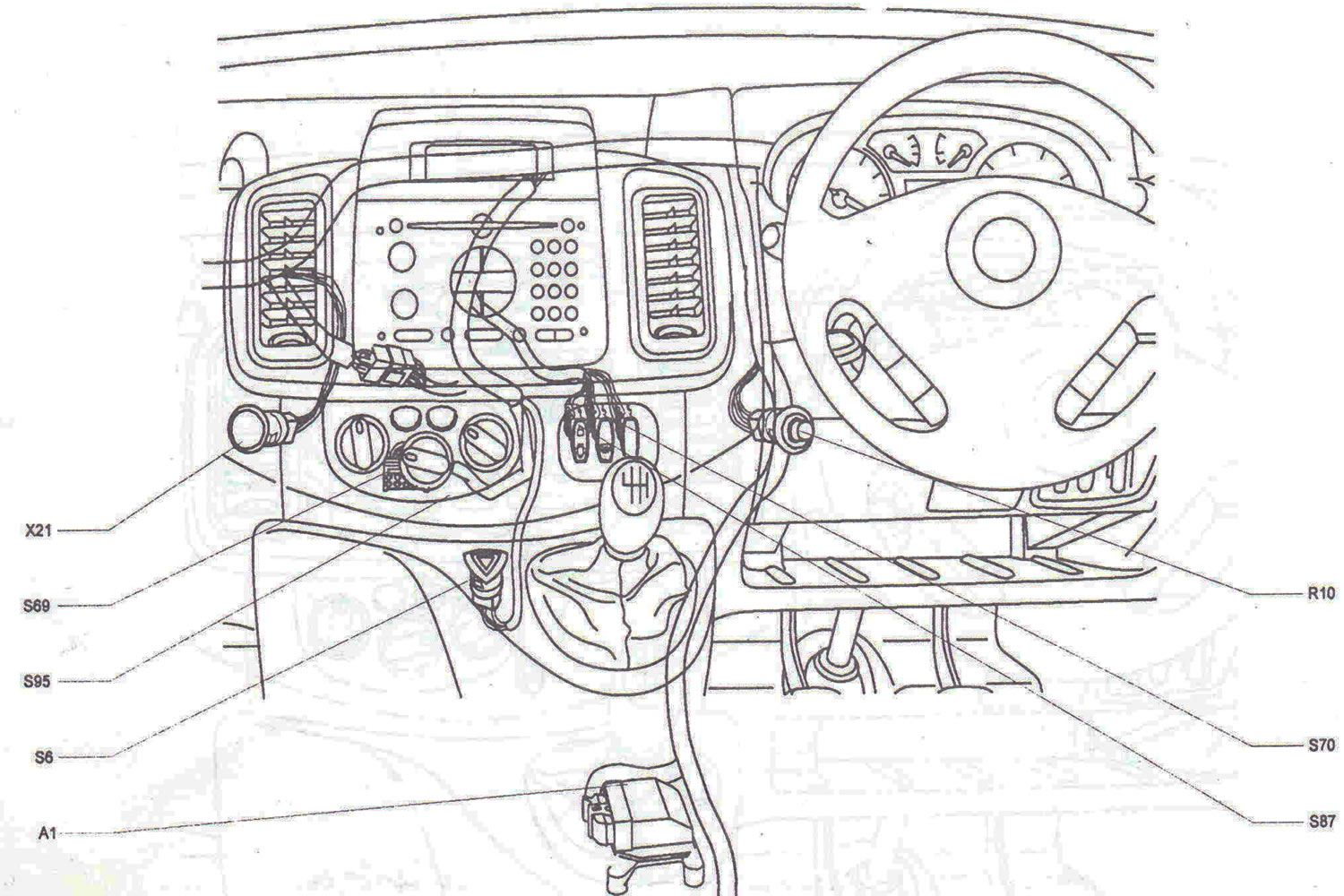

Central part of the instrument panel (right hand drive vehicles)
Open large image in new tab →

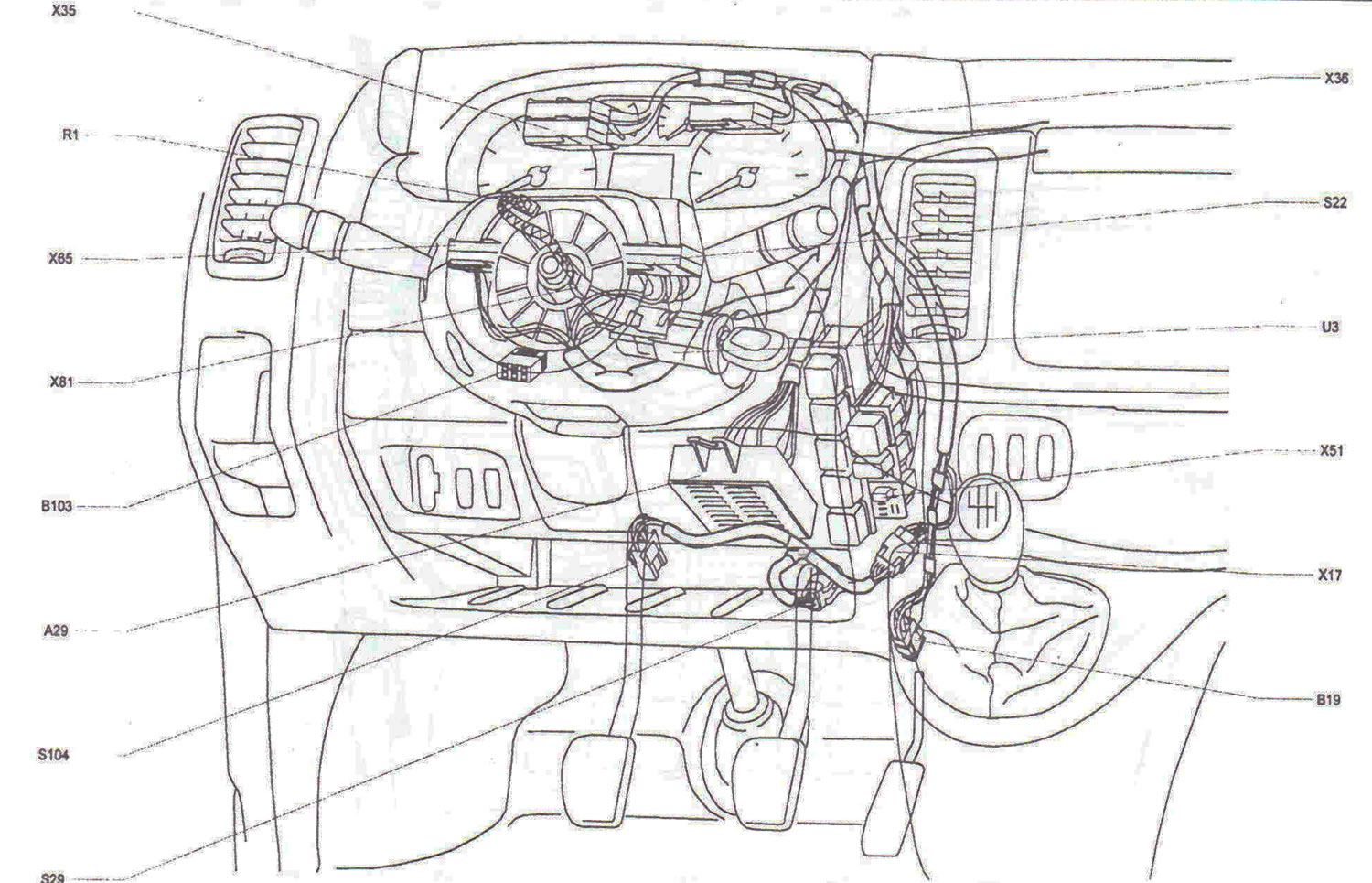

Driver's side instrument panels (left hand drive vehicles) (I)
Open large image in new tab →

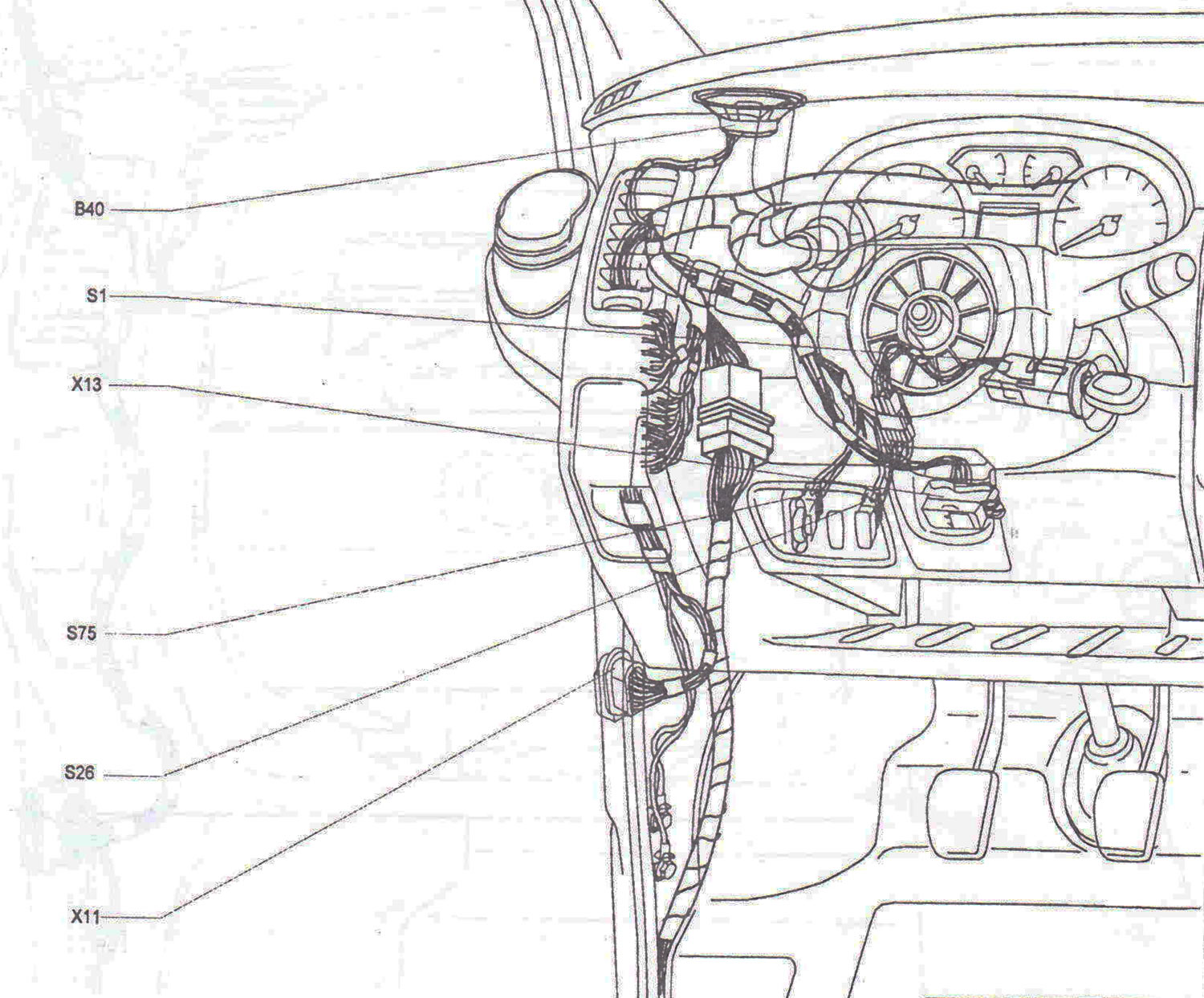

Driver's side instrument panels (left hand drive vehicles) (II)
Open large image in new tab →

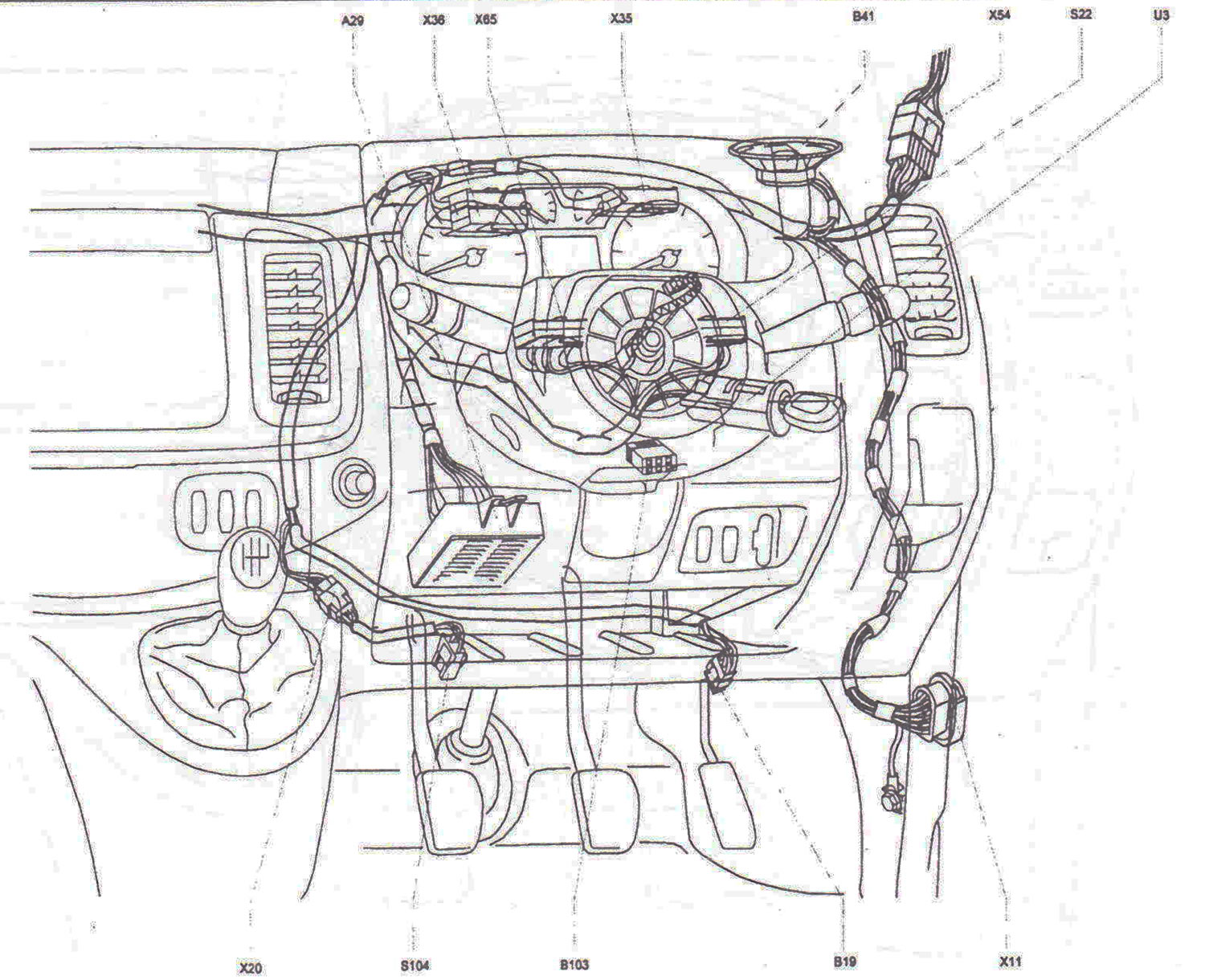

Driver's side instrument panels (right hand drive vehicles)
Open large image in new tab →

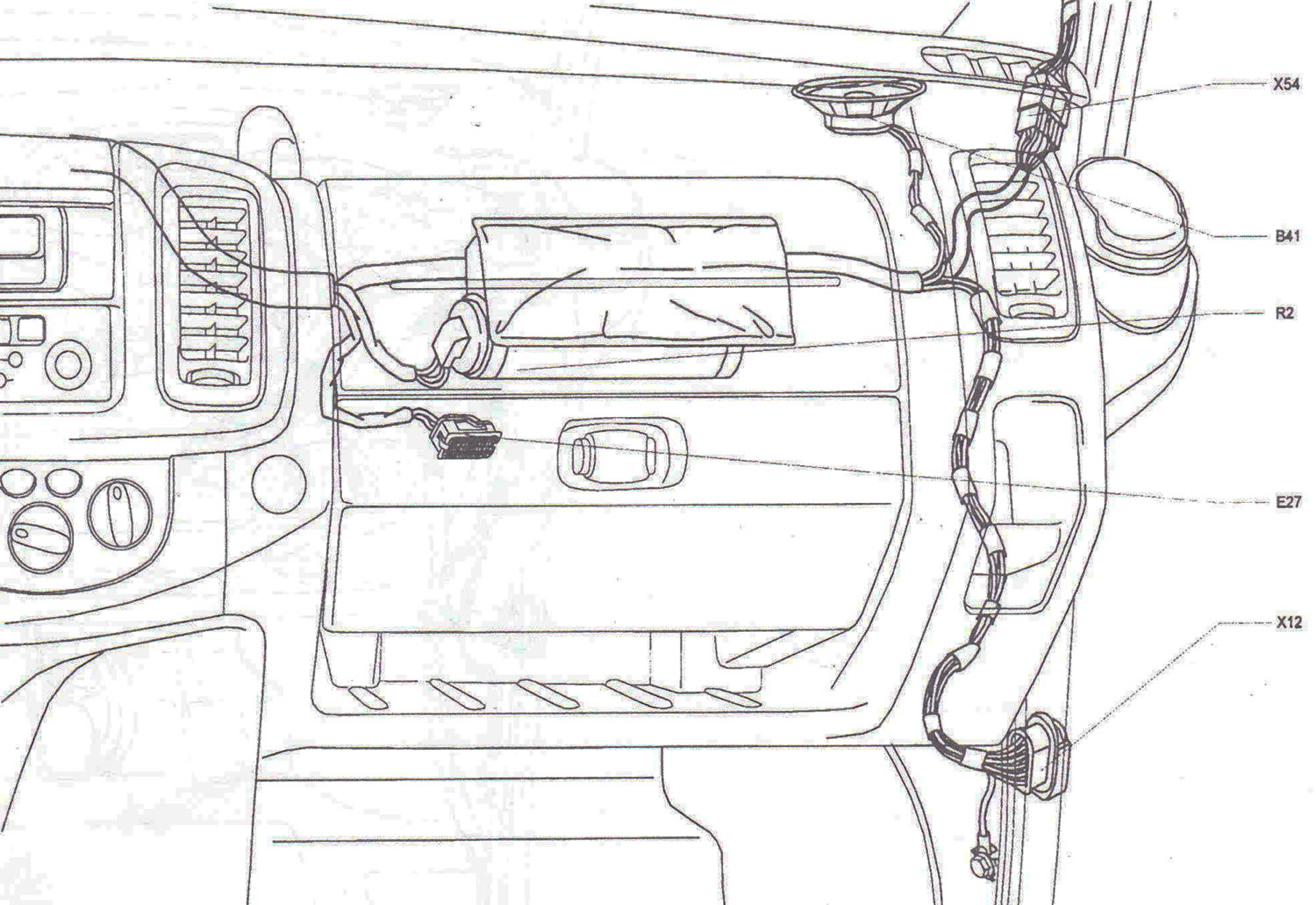

Instrument panels on the passenger side (left hand drive vehicles)
Open large image in new tab →

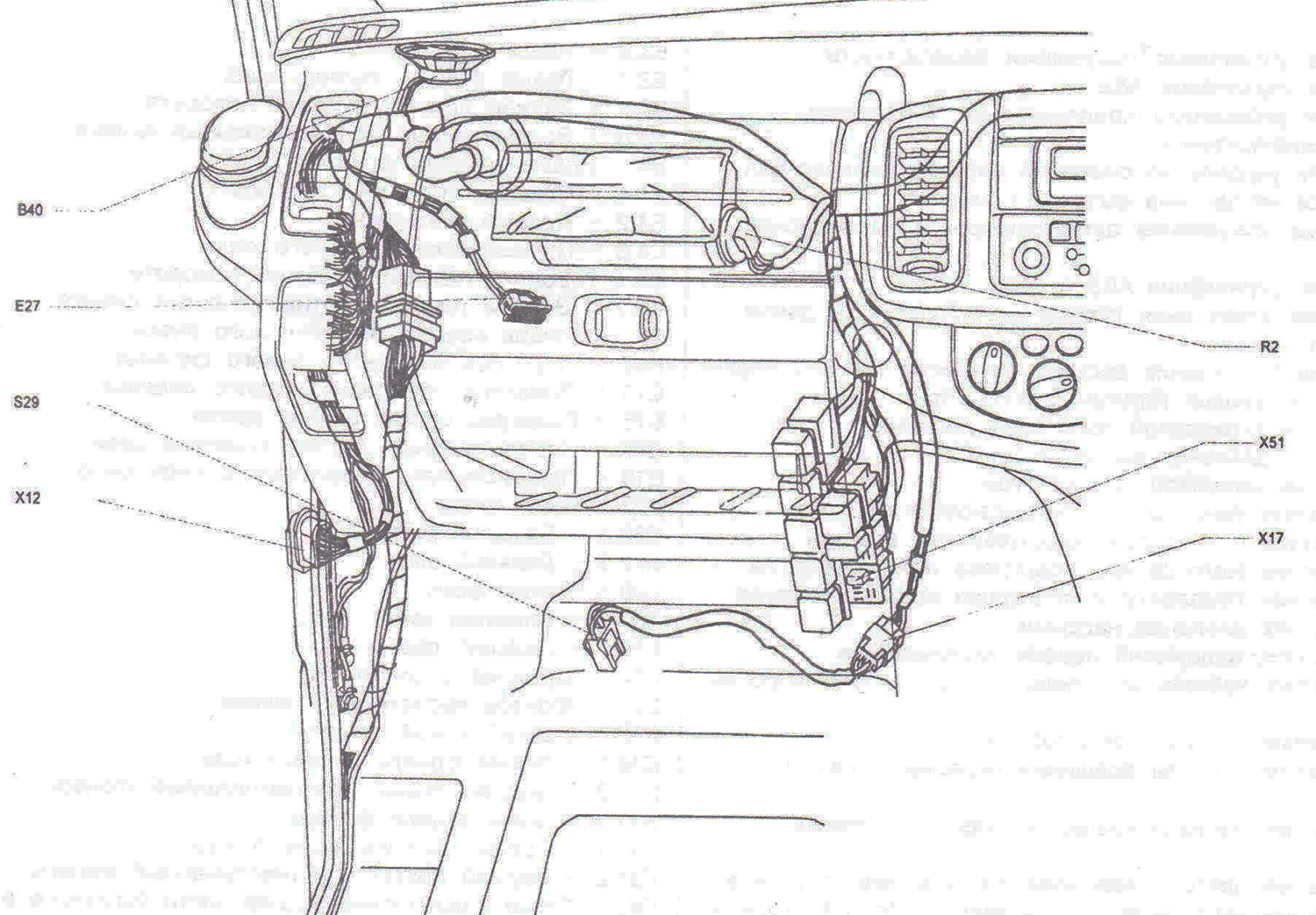

Instrument panels on the passenger side (right hand drive vehicles)
Open large image in new tab →

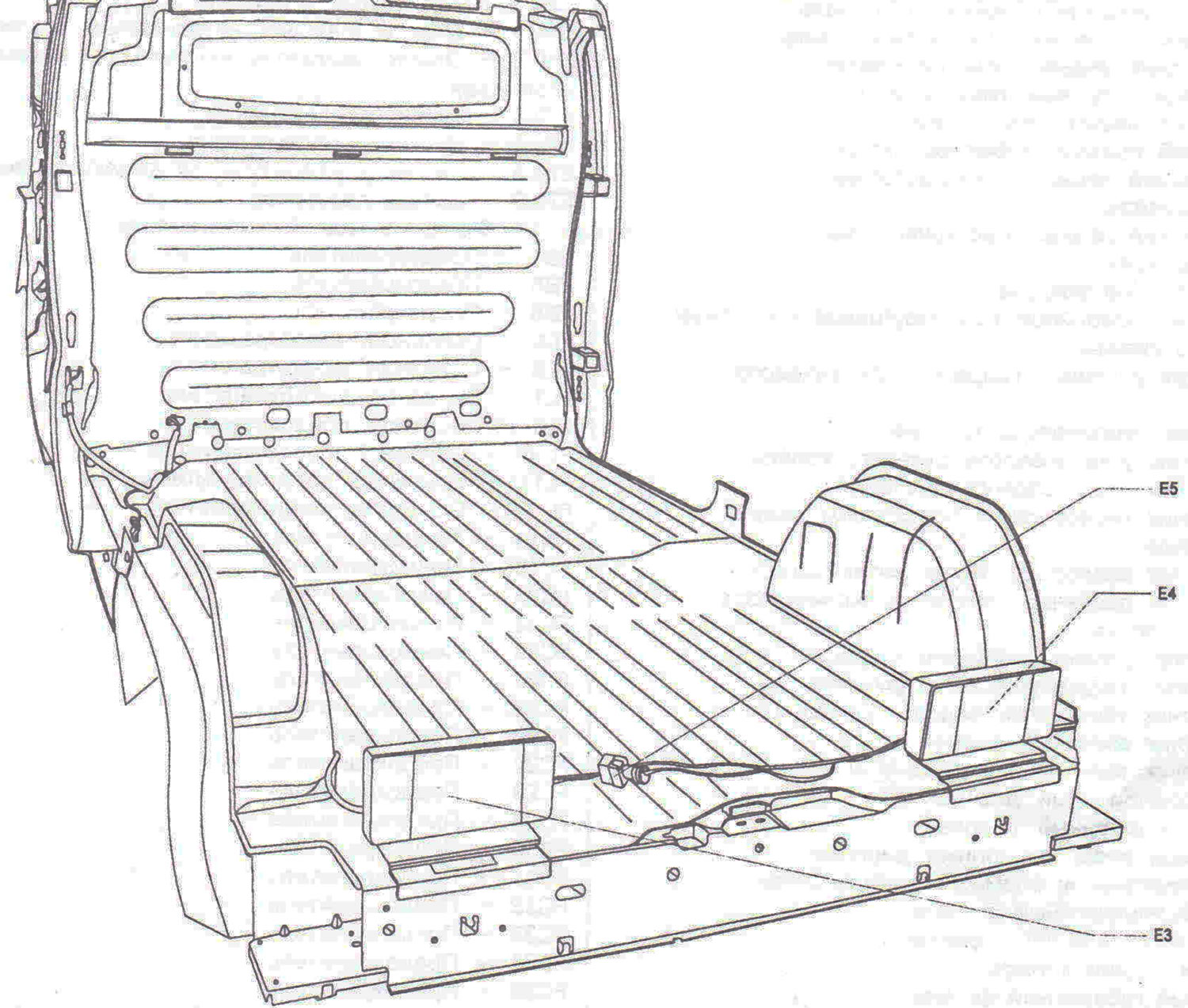

Rear of the car with a platform
Open large image in new tab →
