Removal
1. Remove the engine sump guard.
2. Drain the oil from the gearbox.

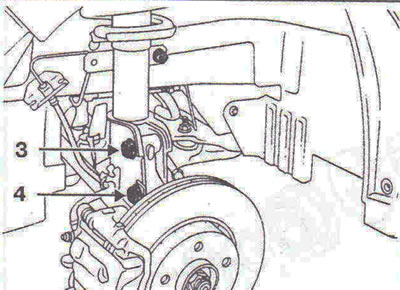

3. Remove the side protective pads of the mudguards, the right front wheel, unscrew the upper bolt 3 securing the shock absorber strut to the steering knuckle and loosen the lower bolt 4, remove the ABS sensor (Fig. 5.30).
Fig. 5.30. Remove the side protective pads of the mudguards, the right front wheel, unscrew the upper bolt 3 securing the shock absorber strut to the steering knuckle and loosen the lower bolt 4, remove the ABS sensor

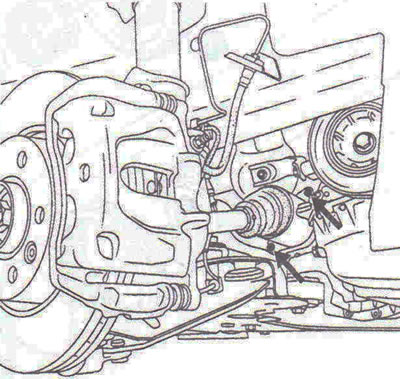

4. Remove the intermediate support flange (Fig. 5.31).
Fig. 5.31. Remove the intermediate support flange.
5. Rotate the steering knuckle and disconnect the axle shaft (being careful not to damage the anthers during this operation).
6. Remove the differential flange sealing ring.
7. Tap the seal on the base with a punch and a small hammer until the seal rotates in the socket.

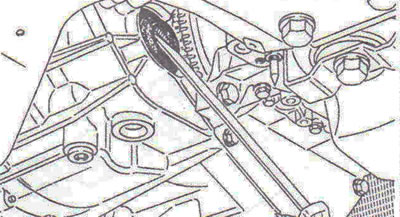

8. When the seal has turned, remove it (Fig. 5.32). Be careful not to damage the splines of the axle gear.
Fig. 5.32. When the seal has turned, remove it.
Installation

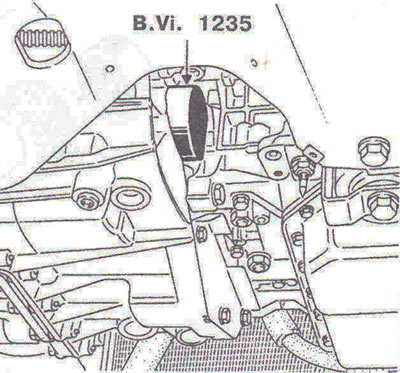

9. Install the oil seal using tool B.Vi.1235 (Fig. 5.33).
Fig. 5.33. Install the oil seal using tool B.Vi.1235.
11. Install the oil seal, then the sealing ring. Apply MOLYKOTE BR2 grease to the splines.
12. Further installation is carried out in the reverse order of removal.
