Removing
1. Raise the rear of the car and secure it on stands. Remove the corresponding rear wheel.
2. Remove the outer bolt securing the upper arm to the rear beam.

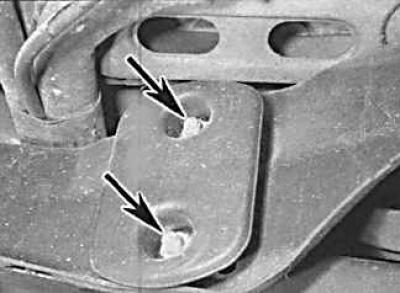

3. Loosen the inner mounting bolts (arrows) and remove the upper arm from the rear beam.
Installation
Installation is carried out in the reverse order of removal, but tighten the mounting bolts after lowering the car on the wheels.
